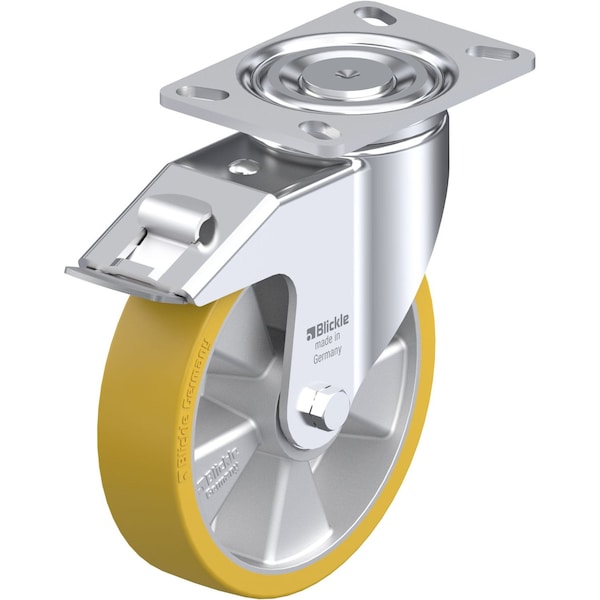

Blickle Swivel Plate Caster, PU, 8", Brake, Load Rating: 1760 lb. LH-ALTH 200K-16-FI - main

Swivel Plate Caster, PU, 8", Brake, Load Rating: 1760 lb.

  • Mfr # LH-ALTH 200K-16-FI

  • Zoro # G0894682

product price:  $175.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Caster Sub-Type
Swivel
Wheel Width
2in
Wheel Dia.
8in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALTH 200K-16-FI
Zoro #
G0894682
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Wheel Dia.
8in
Stem Dia.
No Stem
Overall Height
9.65in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Item
Swivel Caster With Brake
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
1,760 lb
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
System of Measurement
Inch
Tread Color
Light Brown
Non-Marking
Yes
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Standards
RoHS, ICWM
Core Color
Silver
Replacement Wheel
Mfr. No. ALTH 200/20K
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
1760 lb
ESD Conductive
No
Number of Mounting Holes
4
Includes Thread Guards
No
Tread Shape
Standard
Accessories
Optional: RI-05.16 (Directional Lock)
Series
LH Series
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Wheel Core Material
Aluminum
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
