Blickle Swivel Plate Cstr, Polyurthan, 4", Brake LK-PATH 100KF-1-FI - main

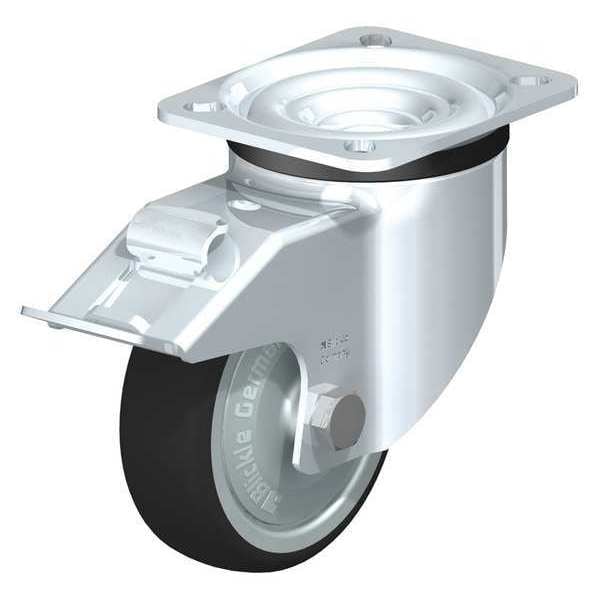

Swivel Plate Cstr, Polyurthan, 4", Brake

  • Mfr # LK-PATH 100KF-1-FI

  • Zoro # G9662567

product price:  $49.19
/ea

Key Features

System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Dia.
100 mm
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-PATH 100KF-1-FI
Zoro #
G9662567
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
3.5 mm
Mounting Bolt Dia.
M8
Overall Height
130 mm
Swivel Radius
95 mm

Details

Item
Swivel Caster With Brake
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Caster Brake Included
Yes
Standards
RoHS, ICWM
Number of Wheels
1
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
Stop Fix Brake (Total Lock)
Includes
Stop-Fix Total-Lock Brake
Frame Finish
Zinc Plated
Wheel Core Material
Nylon
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Medium Duty
Series
LK Series
Load Capacity
200 kg
ESD Conductive
No
Includes Thread Guards
Yes
Tread
Standard
Swivel Raceway Type
Double Ball
Tread Color
Dark Gray
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
