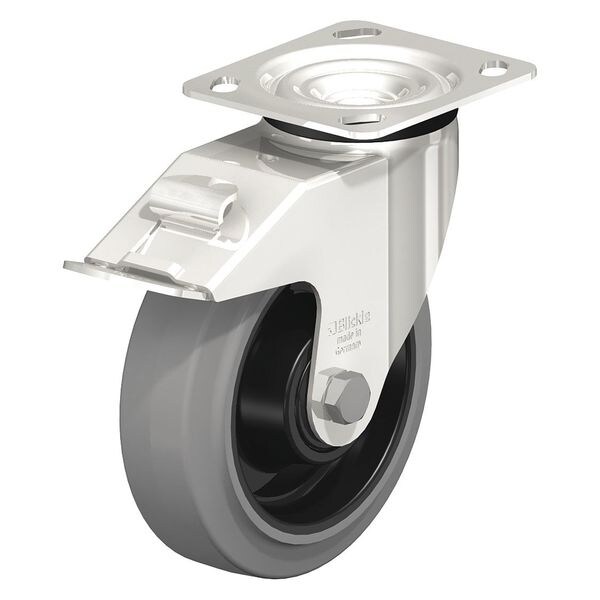

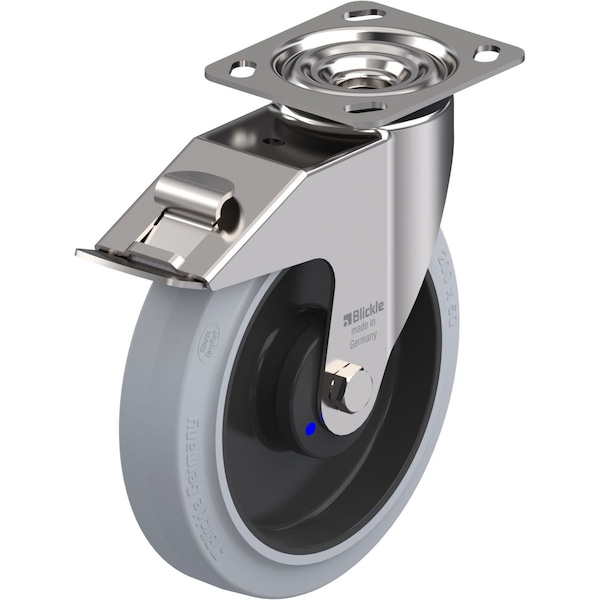

Swivel Plate Caster, Solid Rbber, 8", Brake

  • Mfr # LEX-POEV 200XKA-14-FI-SG

  • Zoro # G0893039


product price:  $175.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Load Rating
660 lb
Caster Stem Type
No Stem/Plate Included
Wheel Width
2in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEX-POEV 200XKA-14-FI-SG
Zoro #
G0893039
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
2in
Overall Height
9-1/4in
Wheel Dia.
8in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.118 in

Details

Load Rating
660 lb
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. POEV 200/12XKA-SG
Tread
Standard
Outside Bolt Hole Spacing
80 mm x 105 mm
Non-Marking
Yes
System of Measurement
Inch
Frame Finish
Stainless Steel
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
75 mm x 105 mm
Includes
Stop-Fix Total-Lock Brake
Core Color
Black
Standards
RoHS, ICWM
Tread Color
Gray
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Frame Material
Stainless Steel
Extended Lead
No
Tread Shape
Standard
Series
LEX Series
Number of Mounting Holes
4
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core Material
Nylon
Load Capacity
660 lb
ESD Conductive
No
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon/Solid Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
