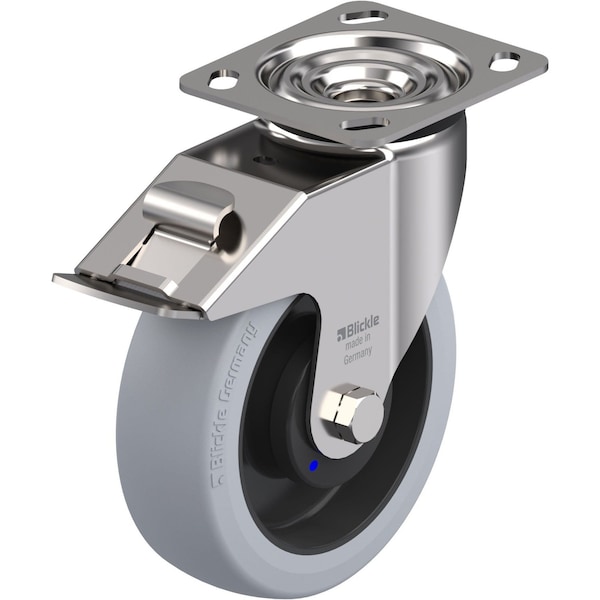

Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk, Load Rating: 660 lb.

  • Mfr # LEX-POEV 160XKA-14-FI-SG
  • Zoro # G0892993
product price:
$
196.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Wheel Width
2in
Caster Sub-Type
Swivel
Overall Height
7-1/2in
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LEX-POEV 160XKA-14-FI-SG
Zoro #
G0892993
UPC #
-
Country of Origin
Germany
Caster Brake Included
Yes
Item
Swivel With Brake
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
660 lb
Non-Marking
Yes
Tread Color
Gray
Includes
Stop-Fix Total-Lock Brake
Outside Bolt Hole Spacing
80 mm x 105 mm
Application
Retail, Industrial, Commercial
Caster Mounting Type
Plate
System of Measurement
Inch
Frame Finish
Stainless Steel
Inside Bolt Hole Spacing
75 mm x 105 mm
Core Color
Black
Tread
Standard
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. POEV 160/12XKA-SG
Caster Brake Type
Stop Fix Brake (Total Lock)
Extended Lead
No
Caster Frame Material
Stainless Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range
Heavy-Duty
Series
LEX Series
Load Capacity
660 lb
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Tread Shape
Standard
ESD Conductive
No
Wheel Core Material
Nylon
Number of Mounting Holes
4
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Nylon/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-25 Degrees To 80 Degrees C

Dimensions

Wheel Width
2in
Overall Height
7-1/2in
Stem Dia.
No Stem
Wheel Dia.
6-5/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-9/32 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.118 in

Description

Swivel With Brake
