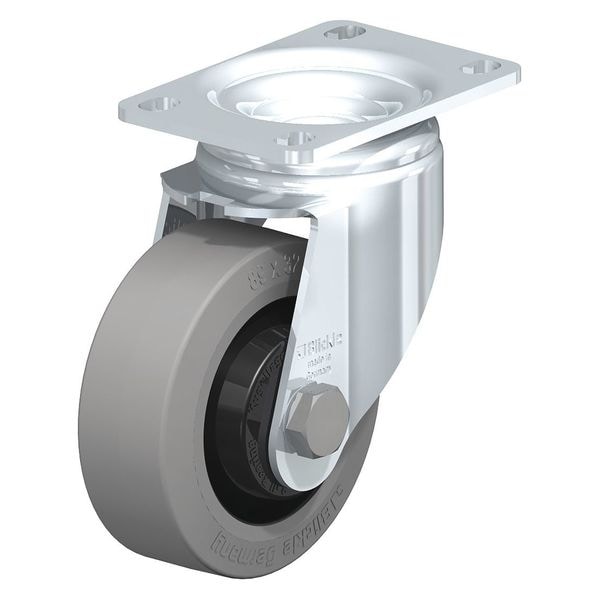

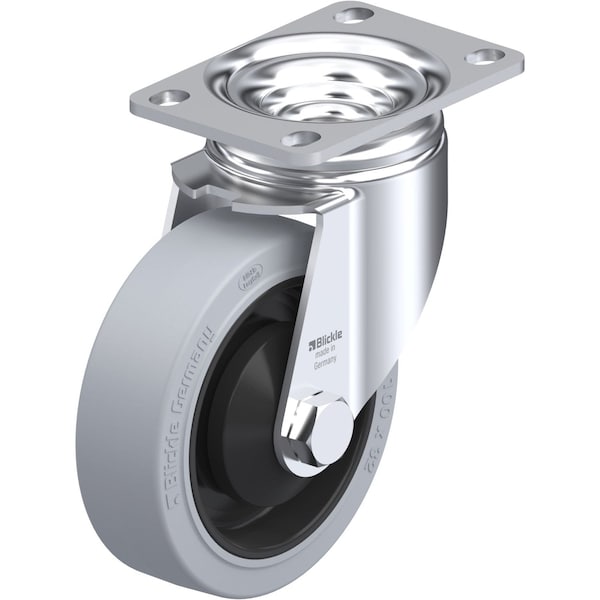

Blickle Swivel Plate Caster, Solid Rbr, 4", 400 lb. L-POEV 100KA-12-SG - main

Swivel Plate Caster, Solid Rbr, 4", 400 lb.

  • Mfr # L-POEV 100KA-12-SG

  • Zoro # G0890211

product price:  $30.79
/ea

Key Features

Caster Brake Included
No
Overall Height
5.12in
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
400 lb.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-POEV 100KA-12-SG
Zoro #
G0890211
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
5.12in
Wheel Width
1-1/2in
Stem Dia.
No Stem
Wheel Dia.
4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-7/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.138 in

Details

Caster Brake Included
No
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
400 lb.
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM
Tread Color
Gray
Non-Marking
Yes
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Core Color
Black
Replacement Wheel
Mfr. No. POEV 100/10K-SG
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Mounting Type
Plate
Tread
Standard
Extended Lead
No
Caster Frame Material
Steel
ESD Conductive
No
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Series
L Series
Tread Shape
Standard
Load Rating Range
Medium Duty
Load Capacity
400 lb
Accessories
Optional: RI-03.12 (Directional Lock)
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel/Tread Material
Nylon/Solid Rubber
Wheel Hardness Rating
65 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
