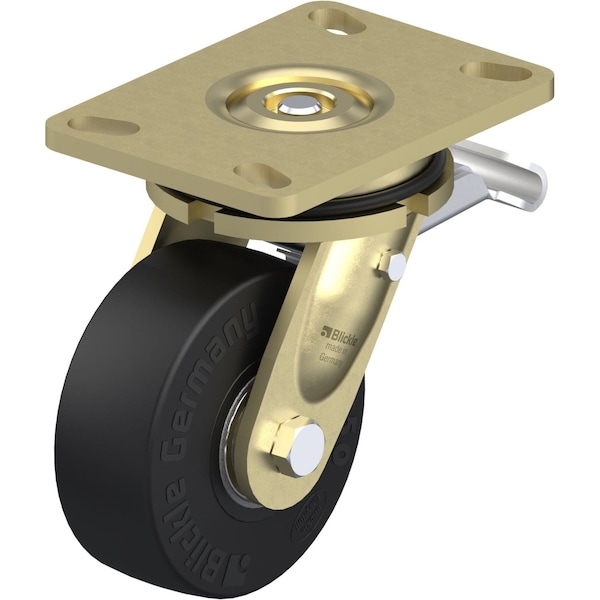

Blickle Swivel Plate Caster, Solid Rubbr, 5", Brake, Caster Load Rating Range: Light-Duty LS-SE 125K-16-ST - main

Swivel Plate Caster, Solid Rubbr, 5", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LS-SE 125K-16-ST

  • Zoro # G0894393

product price:  $245.99
/ea
Free Shipping & Returns

Key Features

Overall Height
6.69in
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Stem Dia.
No Stem
Wheel Dia.
5in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-SE 125K-16-ST
Zoro #
G0894393
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6.69in
Stem Dia.
No Stem
Wheel Dia.
5in
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
700 lb
Tread Color
Black
Caster Mounting Type
Plate
Application
Retail, Industrial, Commercial
System of Measurement
Inch
Standards
RoHS, ICWM
Core Color
Black
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated, Yellow Passivated
Non-Marking
No
Includes
Stop-Top Total-Lock Brake
Replacement Wheel
Mfr. No. SE 125/20K
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
Stop Top Brake (Total Lock)
Tread
Standard
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Light-Duty
Tread Shape
Standard
Includes Thread Guards
No
Wheel Core Material
Pressed Steel
Load Capacity
700 lb
Number of Mounting Holes
4
ESD Conductive
No
Accessories
Optional: RI-LS-16 (Directional Lock)
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LS Series
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Nylon/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
