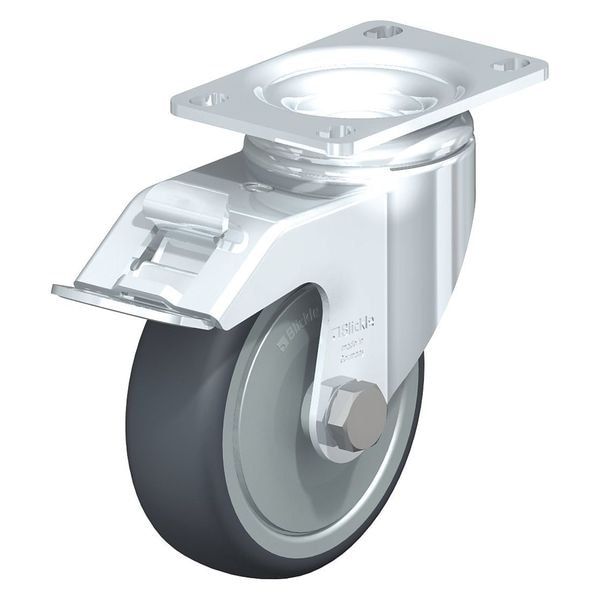

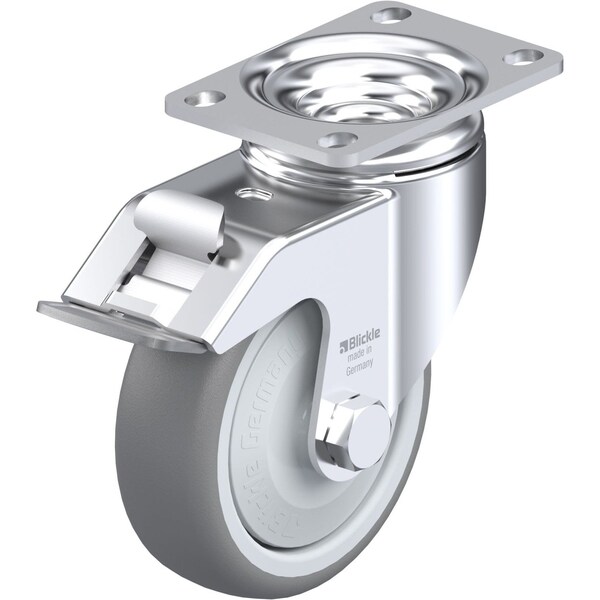

Blickle Swivel Plate Caster, TPR, 4", Brake L-TPA 102KF-12-FI - main

Swivel Plate Caster, TPR, 4", Brake

  • Mfr # L-TPA 102KF-12-FI

  • Zoro # G0890561

product price:  $30.15
/ea

Key Features

Wheel Width
1-1/4in
Number of Wheels
1
Stem Dia.
No Stem
Caster Brake Included
Yes
Overall Height
5.12in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-TPA 102KF-12-FI
Zoro #
G0890561
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-1/4in
Stem Dia.
No Stem
Overall Height
5.12in
Wheel Dia.
4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-7/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.138 in

Details

Number of Wheels
1
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Load Rating
240 lb.
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Core Color
Gray
Tread Color
Gray
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Caster Brake Type
Stop Fix Brake (Total Lock)
Standards
RoHS, ICWM
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. TPA 102/10K-FK
Non-Marking
Yes
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
Wheel Core Material
Polypropylene
Load Capacity
245 lb
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
Series
L Series
Number of Mounting Holes
4
Wheel Hardness Rating
85 Shore A
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel With Brake
