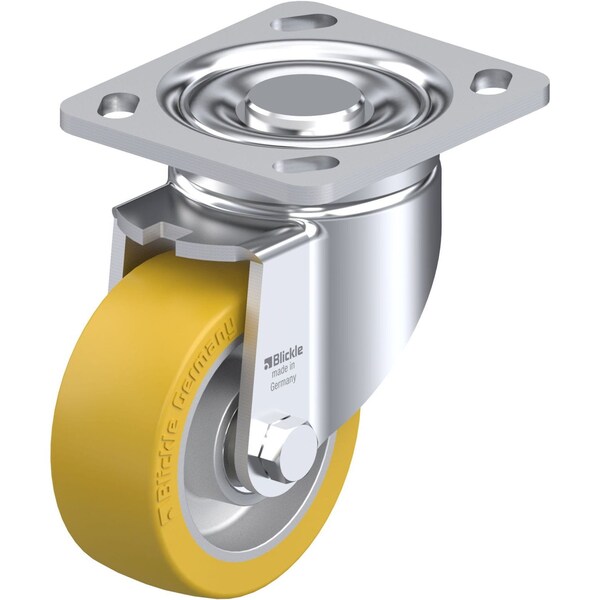

Blickle Swivel Plate Caster, PU, 4", 770 lb., Caster Load Rating Range: Heavy-Duty LH-ALTH 101K-14 - main

Swivel Plate Caster, PU, 4", 770 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LH-ALTH 101K-14

  • Zoro # G0894579

product price:  $92.79
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Overall Height
5.51in
Load Rating
770 lb
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALTH 101K-14
Zoro #
G0894579
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
5.51in
Stem Dia.
No Stem
Wheel Width
1-9/16in
Wheel Dia.
4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Caster Sub-Type
Swivel
Item
Swivel Caster
Load Rating
770 lb
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Number of Wheels
1
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Tread Color
Light Brown
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. ALTH 101/15K
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Silver
Tread
Standard
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
770 lb
ESD Conductive
No
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Aluminum
Tread Shape
Standard
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
