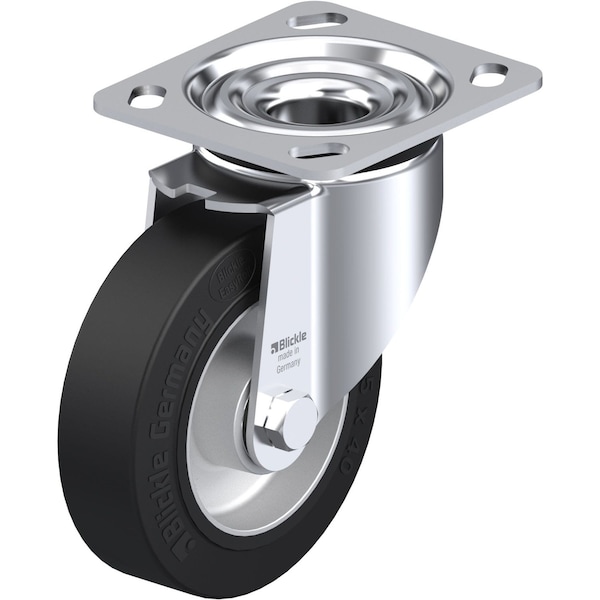

Blickle Swivel Plate Caster, TPR, 5", 550 lb. LK-ALEV 125K-14 - main

Swivel Plate Caster, TPR, 5", 550 lb.

  • Mfr # LK-ALEV 125K-14

  • Zoro # G0892409

product price:  $46.85
/ea

Key Features

Number of Wheels
1
Overall Height
6-1/8in
Wheel Width
1-9/16in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-ALEV 125K-14
Zoro #
G0892409
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-1/8in
Wheel Width
1-9/16in
Wheel Dia.
5in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Number of Wheels
1
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
550 lb.
Item
Swivel Caster
Caster Sub-Type
Swivel
Tread
Standard
Inside Bolt Hole Spacing
3 in x 3 in
System of Measurement
Inch
Tread Color
Black
Application
Retail, Industrial, Commercial
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALEV 125/15K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Type
No Brake Included
Standards
RoHS, ICWM
Non-Marking
No
Core Color
Silver
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Number of Mounting Holes
4
Load Capacity
550 lb
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LK Series
Includes Thread Guards
No
Wheel Core Material
Aluminum
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Plate Caster
