  11. Swivel Plate Caster, PU, 5", Brake

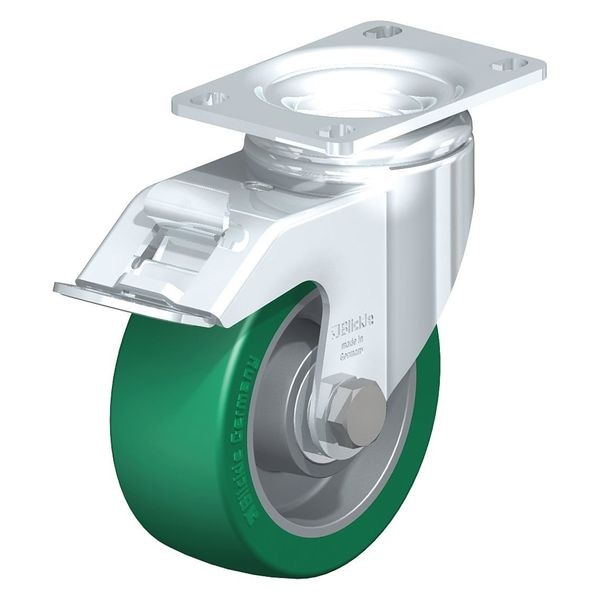

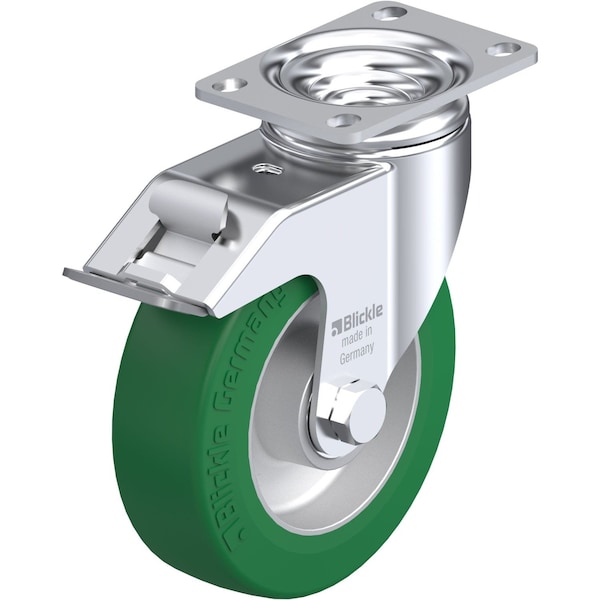

Blickle Swivel Plate Caster, PU, 5", Brake L-ALST 125K-12-FI - main

Swivel Plate Caster, PU, 5", Brake

  • Mfr # L-ALST 125K-12-FI

  • Zoro # G0890817

product price: $64.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-ALST 125K-12-FI
Zoro #
G0890817
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Wheel Width
1-9/16in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in
Mounting Bolt Dia.
5/16 in
Overall Height
6.1in
Stem Dia.
No Stem
Swivel Radius
4 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
400 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Green
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM
Tread
Standard
Replacement Wheel
Mfr. No. ALST 125/15K
Frame Finish
Zinc Plated
Extended Lead
No
ESD Conductive
No
Series
L Series
Load Capacity
400 lb
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
Includes Thread Guards
No
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
