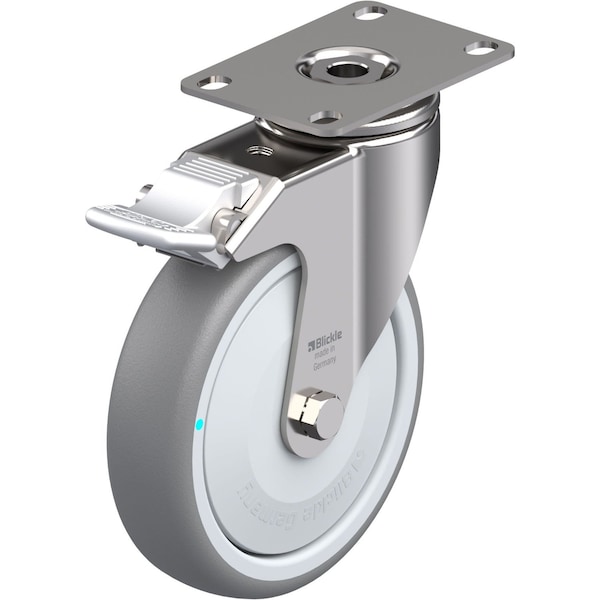

Blickle Swivel Plate Caster, TPR, 5", Brake, Caster Load Rating Range: Light-Duty LKPXA-TPA 126KFD-12-FI - main

Swivel Plate Caster, TPR, 5", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LKPXA-TPA 126KFD-12-FI

  • Zoro # G0889207

product price:  $58.79
/ea

Key Features

Overall Height
6.34in
Number of Wheels
1
Wheel Width
1-1/4in
Load Rating
265 lb.
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-TPA 126KFD-12-FI
Zoro #
G0889207
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6.34in
Wheel Width
1-1/4in
Wheel Dia.
5in
Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-1/16 in
Mounting Plate Thickness
0.089 in
Mounting Plate Size
2-1/2 in x 3-5/8 in

Details

Number of Wheels
1
Load Rating
265 lb.
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Item
Swivel Caster With Brake
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Tread
Standard
Replacement Wheel
Mfr. No. TPA 126/8KD-FK
Core Color
Gray
Caster Mounting Type
Plate
Caster Brake Type
Stop Fix Brake (Total Lock)
Standards
RoHS, ICWM, NSF
System of Measurement
Inch
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Stainless Steel
Tread Color
Gray
Extended Lead
No
Caster Frame Material
Stainless Steel
Swivel Raceway Type
Double Ball
Series
LKPXA Series
Tread Shape
Standard
ESD Conductive
No
Number of Mounting Holes
4
Includes Thread Guards
Yes
Load Rating Range
Light-Duty
Load Capacity
265 lb
Wheel Core Material
Polypropylene
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
85 Shore A
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel With Brake
