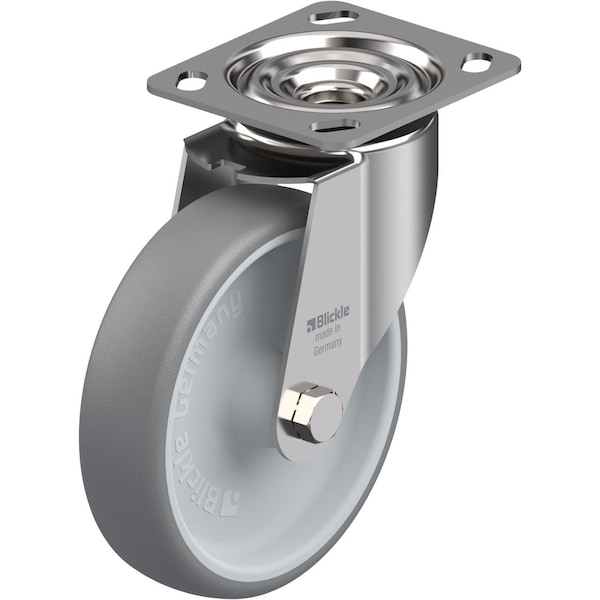

Blickle Swivel Plate Caster, TPR, 6-5/16", 440 lb. LEX-TPA 160G-14 - main

Swivel Plate Caster, TPR, 6-5/16", 440 lb.

  • Mfr # LEX-TPA 160G-14

  • Zoro # G0892731

product price:  $99.85
/ea
Free Shipping & Returns

Key Features

Overall Height
7.68in
Wheel Dia.
6-5/16in
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Wheel Width
1-9/16in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEX-TPA 160G-14
Zoro #
G0892731
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
7.68in
Wheel Dia.
6-5/16in
Wheel Width
1-9/16in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-9/32 in
Mounting Plate Thickness
0.118 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Load Rating
440 lb.
Caster Brake Included
No
Item
Swivel Caster
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Gray
Caster Mounting Type
Plate
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Tread Color
Gray
Non-Marking
Yes
Frame Finish
Stainless Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
RoHS, ICWM
Caster Brake Type
No Brake Included
Replacement Wheel
Mfr. No.TPA 160/20G
Caster Frame Material
Stainless Steel
Extended Lead
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Includes Thread Guards
No
ESD Conductive
No
Series
LEX Series
Load Capacity
440 lb
Swivel Raceway Type
Double Ball
Load Rating Range
Medium Duty
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Wheel Hardness Rating
85 Shore A
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel
