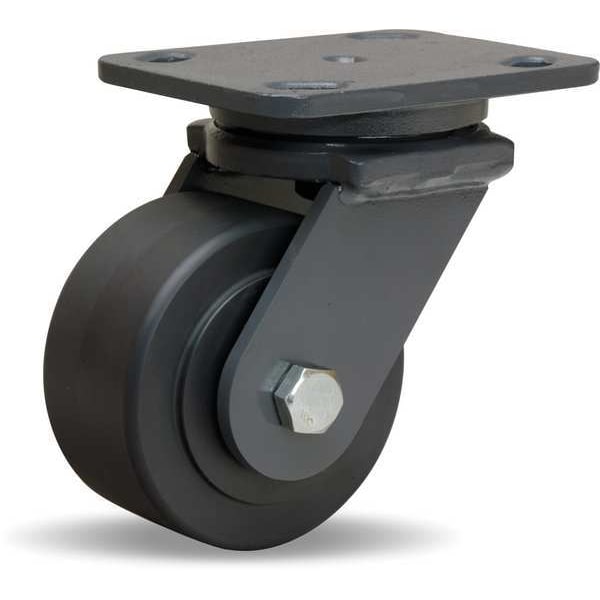

Hamilton Plte Caster, Swivl, Nylon, 4 in., 2000 lb., B S-WH-4NYB - main

Plte Caster, Swivl, Nylon, 4 in., 2000 lb., B

  • Mfr # S-WH-4NYB

  • Zoro # G6480932

product price:  $190.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
B
Features
Floor Protective
Load Rating
2000 lb
Caster Sub-Type
Swivel
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WH-4NYB
Zoro #
G6480932
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8in
Stem Dia.
No Stem
Wheel Dia.
4 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
5 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in

Details

Caster Plate Hole Pattern
B
Features
Floor Protective
Load Rating
2000 lb
Caster Sub-Type
Swivel
Replacement Wheel
49H445
Item
Plate Caster
Extended Lead
No
Number of Wheels
1
Core Color
Black
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Stem Type
No Stem/Plate Included
Frame Finish
Enamel
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Thread Guards
No
Non-Marking
Yes
Includes
Spanner Bushing
Standards
ANSI ICWM
Wheel Color
Black
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Core Material
Nylon
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Bearing Type
Ball
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Load Capacity - Maximum
2,000 lb
Wheel Hardness Rating
85 Shore D
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
