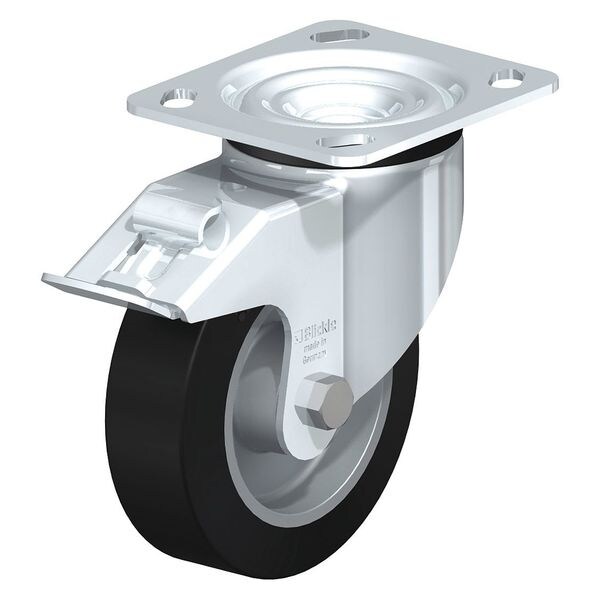

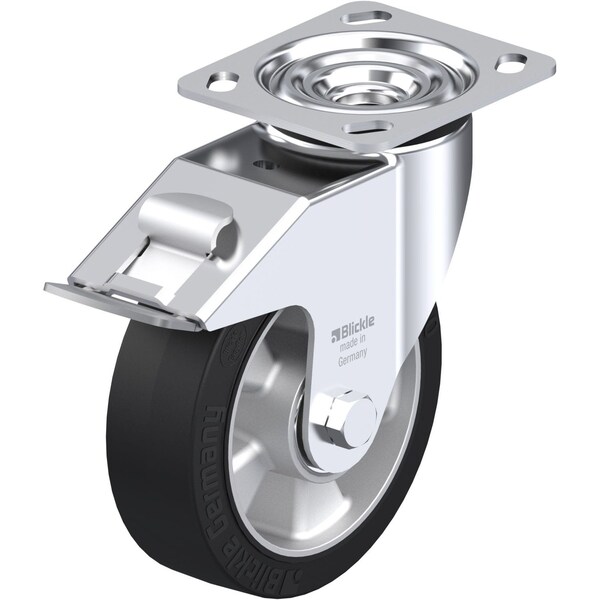

Blickle Swivel Plate Caster, TPR, 6", Brake LE-ALEV 150K-14-FI - main

Swivel Plate Caster, TPR, 6", Brake

  • Mfr # LE-ALEV 150K-14-FI

  • Zoro # G0892250

product price:  $82.25
/ea
Free Shipping & Returns

Key Features

Wheel Width
2-1/8in
Caster Stem Type
No Stem/Plate Included
Overall Height
7.68in
Caster Brake Included
Yes
Wheel Dia.
6in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LE-ALEV 150K-14-FI
Zoro #
G0892250
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2-1/8in
Overall Height
7.68in
Wheel Dia.
6in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Load Rating
660 lb.
Caster Sub-Type
Swivel
Number of Wheels
1
Replacement Wheel
Mfr. No. ALEV 150/20K
Includes
Stop-Fix Total-Lock Brake
Core Color
Silver
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
System of Measurement
Inch
Caster Mounting Type
Plate
Application
Retail, Industrial, Commercial
Tread
Standard
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Non-Marking
No
Tread Color
Black
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
660 lb
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
ESD Conductive
No
Series
LE Series
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
