  11. Swivel Plate Caster, Wht Nyln, 4", 2750 lb.

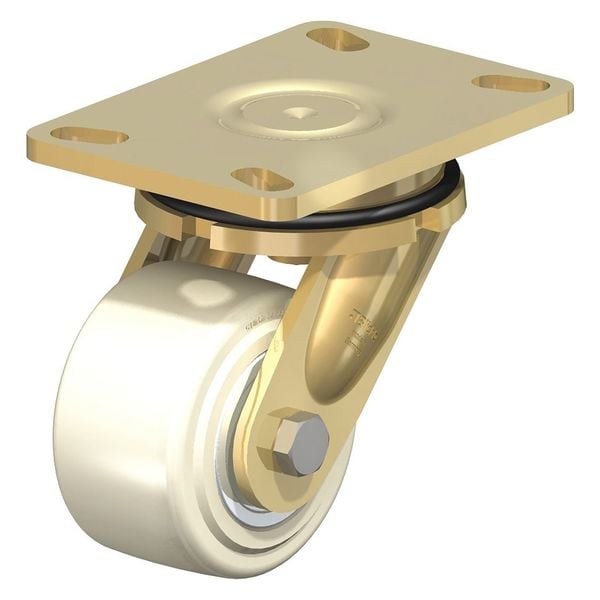

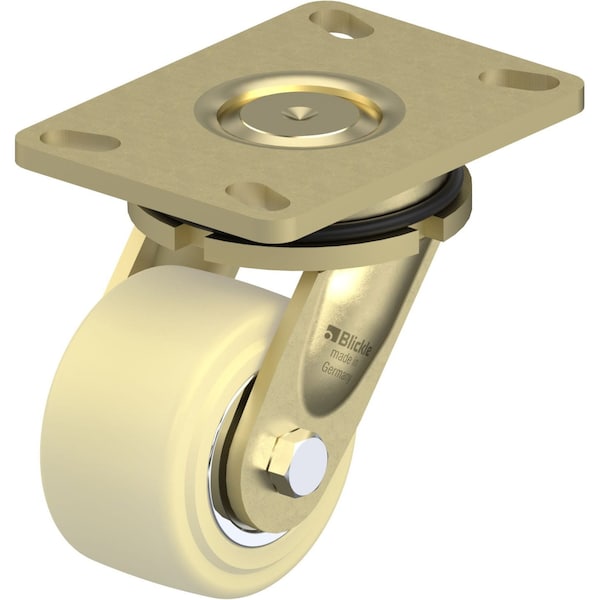

Blickle Swivel Plate Caster, Wht Nyln, 4", 2750 lb. LS-GSPO 101K-16 - main

Swivel Plate Caster, Wht Nyln, 4", 2750 lb.

  • Mfr # LS-GSPO 101K-16

  • Zoro # G0895321

product price: $189.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake Included
Wheel Dia.
4in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-GSPO 101K-16
Zoro #
G0895321
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Wheel Width
2-1/8in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
5-23/32in
Swivel Radius
4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake Included
Load Rating
2750 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. GSPO 101/25K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated, Yellow Passivated
Tread Color
Natural Beige
Tread
Standard
Extended Lead
No
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
ESD Conductive
No
Series
LS Series
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel Core Material
Nylon
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Load Capacity
2750 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
