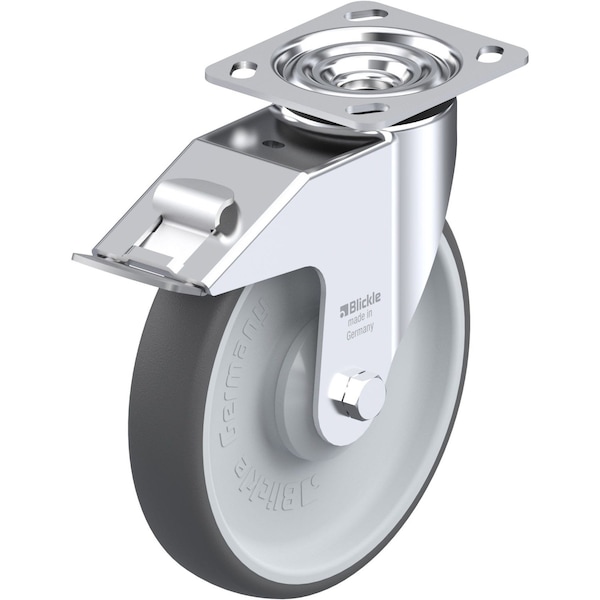

Blickle Swivel Plate Caster, PU, 8", Brake, Wheel Width: 1-9/16" LE-PATH 200KA-14-FI - main

Swivel Plate Caster, PU, 8", Brake, Wheel Width: 1-9/16"

  • Mfr # LE-PATH 200KA-14-FI

  • Zoro # G0891873

product price:  $83.19
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Number of Wheels
1
Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Load Rating
660 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 200KA-14-FI
Zoro #
G0891873
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Stem Dia.
No Stem
Overall Height
9-1/4in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Sub-Type
Swivel
Item
Swivel Caster With Brake
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
660 lb
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. PATH 200/12K
Caster Brake Type
Stop Fix Brake (Total Lock)
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Includes
Stop-Fix Total-Lock Brake
System of Measurement
Inch
Core Color
Gray
Tread Color
Dark Gray
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
3 in x 3 in
Tread
Standard
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
300 kg
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Medium Duty
Series
LE Series
Wheel Core Material
Nylon
ESD Conductive
No
Tread Shape
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
Number of Mounting Holes
4
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
