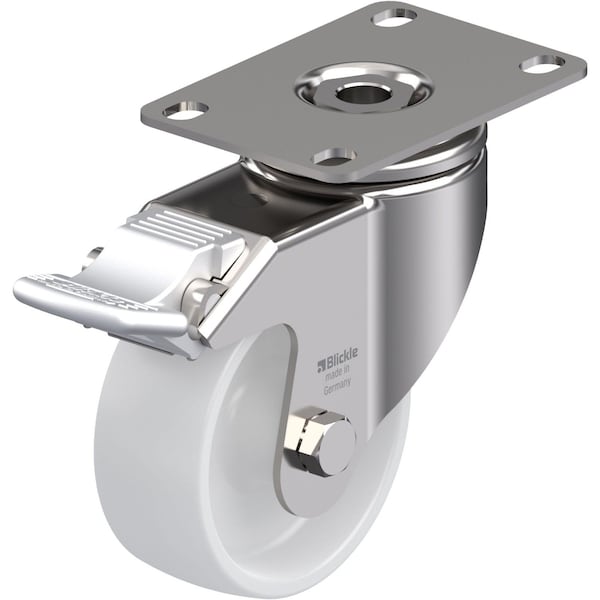

Blickle Swivel Plate Caster, Wt Nyln, 3-1/8", Brake, Caster Load Rating Range: Light-Duty LKPXA-PO 80G-12-FI - main

Swivel Plate Caster, Wt Nyln, 3-1/8", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LKPXA-PO 80G-12-FI

  • Zoro # G0889240

product price:  $48.29
/ea

Key Features

Caster Brake Included
Yes
Stem Dia.
No Stem
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-1/4in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-PO 80G-12-FI
Zoro #
G0889240
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
1-1/4in
Wheel Dia.
3-1/8in
Overall Height
4.37in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/8 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Load Rating
265 lb
Non-Marking
Yes
Core Color
White
Standards
RoHS, ICWM, NSF
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread Color
White
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
System of Measurement
Inch
Replacement Wheel
Mfr. No. PO 80/12G
Tread
Standard
Application
Retail, Industrial, Commercial, Corrosion Resistance
Frame Finish
Stainless Steel
Includes
Stop-Fix Total-Lock Brake
Caster Frame Material
Stainless Steel
Extended Lead
No
Includes Thread Guards
No
Series
LKPXA Series
Load Capacity
265 lb
ESD Conductive
No
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Light-Duty
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Hardness Rating
70 Shore D
Wheel/Tread Material
Nylon
Wheel Bearing Type
Plain
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
