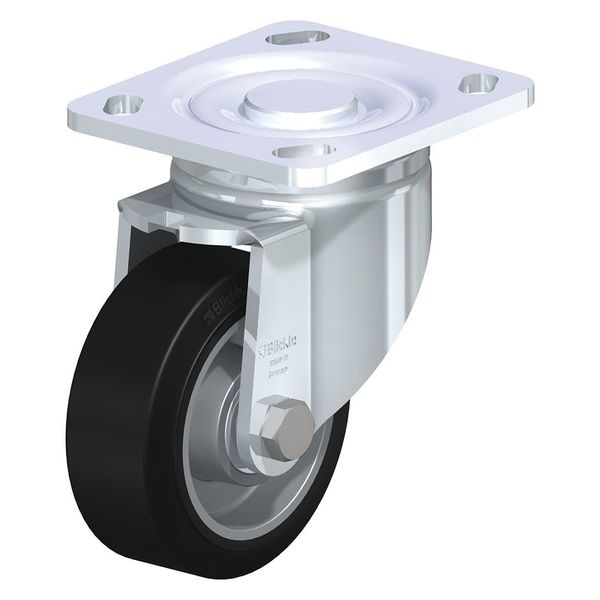

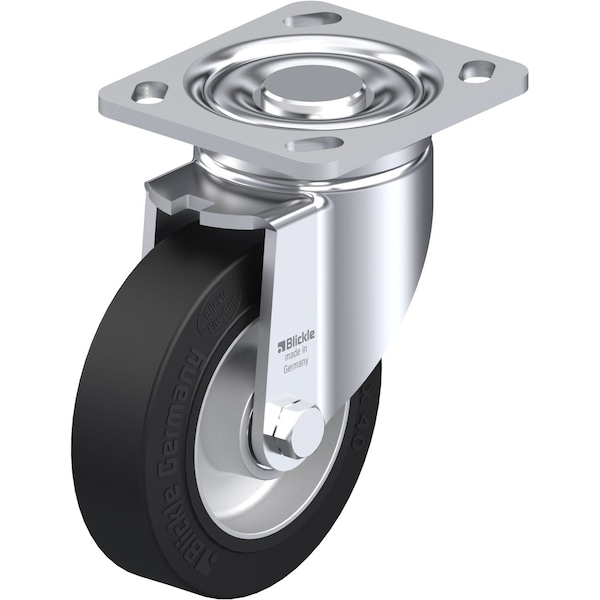

Swivel Plate Castr, Solid Rbbr, 5", 550 lb.

  • Mfr # LH-ALEV 125K-14

  • Zoro # G0894098

product price:
$
97.69
/ea

Key Features

Wheel Dia.
5in
Caster Sub-Type
Swivel
Number of Wheels
1
Wheel Width
1-9/16in
Overall Height
6-1/2in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALEV 125K-14
Zoro #
G0894098
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Wheel Width
1-9/16in
Overall Height
6-1/2in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Sub-Type
Swivel
Item
Plate Caster
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
550 lb
Caster Brake Included
No
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Silver
Application
Retail, Industrial, Commercial
System of Measurement
Inch
Non-Marking
No
Tread Color
Black
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Caster Brake Type
No Brake Included
Tread
Standard
Replacement Wheel
Mfr. No. ALEV 125/15K
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Extended Lead
No
ESD Conductive
No
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity
550 lb
Tread Shape
Standard
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Double Ball
Series
LH Series
Wheel Hardness Rating
65 Shore A
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 175 Degrees F
Load Capacity - Maximum
550 lb

Description

Plate Caster
