  11. Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk, Caster Load Rating Range: Heavy-Duty

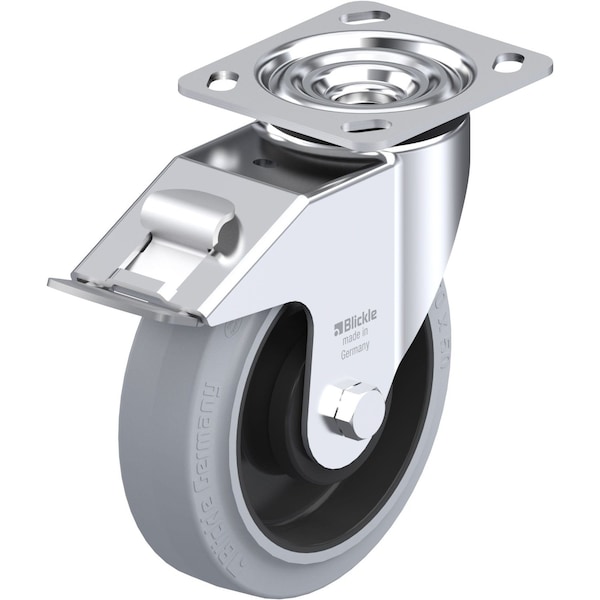

Blickle Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk, Caster Load Rating Range: Heavy-Duty LE-POEV 160KA-14-FI-SG - main

Swivel Plate Cstr, Solid Rbbr, 6-5/16", Brk, Caster Load Rating Range: Heavy-Duty

  • Mfr # LE-POEV 160KA-14-FI-SG

  • Zoro # G0892232

product price: $70.25
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
6-5/16in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-POEV 160KA-14-FI-SG
Zoro #
G0892232
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6-5/16in
Wheel Width
2in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
7-1/2in
Swivel Radius
5-9/32 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
660 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. POEV 160/12K-SG
Tread Color
Gray
Application
Retail, Industrial, Commercial
Tread
Standard
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Extended Lead
No
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
ESD Conductive
No
Accessories
Optional: RI-04.14 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LE Series
Includes Thread Guards
No
Load Capacity
660 lb
Wheel Core Material
Nylon
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
