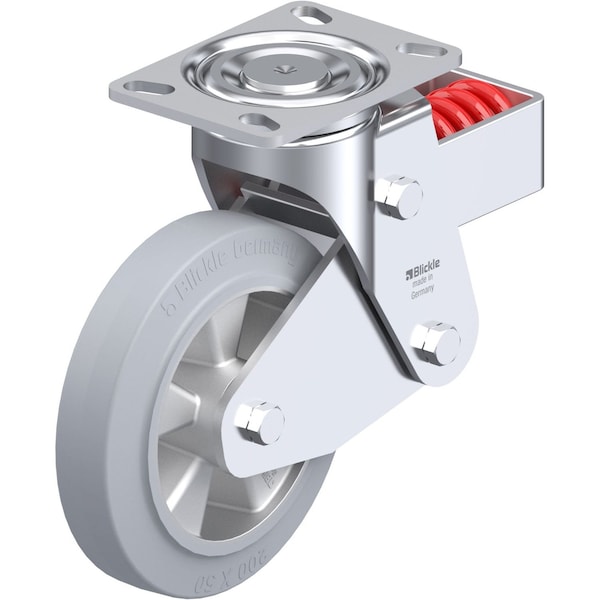

Blickle Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Caster Load Rating Range: Heavy-Duty LHF-ALEV 200K-16-SG - main

Swivel Plate Cstr, Solid Rbbr, 8", 1100 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LHF-ALEV 200K-16-SG

  • Zoro # G0895139

product price:  $309.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Stem Dia.
No Stem
Wheel Width
2in
Load Rating
1100 lb.
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LHF-ALEV 200K-16-SG
Zoro #
G0895139
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
2in
Overall Height
10.43in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-9/16 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
1100 lb.
Number of Wheels
1
Caster Sub-Type
Swivel
Item
Swivel Caster
Tread Color
Gray
Non-Marking
Yes
System of Measurement
Inch
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread
Standard
Replacement Wheel
Mfr. No. ALEV 200/20K-SG
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Application
Retail, Industrial, Commercial
Caster Brake Type
No Brake Included
Includes
Steel Spring Shock Absorbing
Core Color
Silver
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Extended Lead
No
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Core Material
Aluminum
Load Capacity
500 lb
Includes Thread Guards
No
Series
LHF Series
Number of Mounting Holes
4
ESD Conductive
No
Max. Spring Deflection
1 in
Load Rating Range
Heavy-Duty
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F
Maximum Compression Force
880 lb

Description

Swivel
