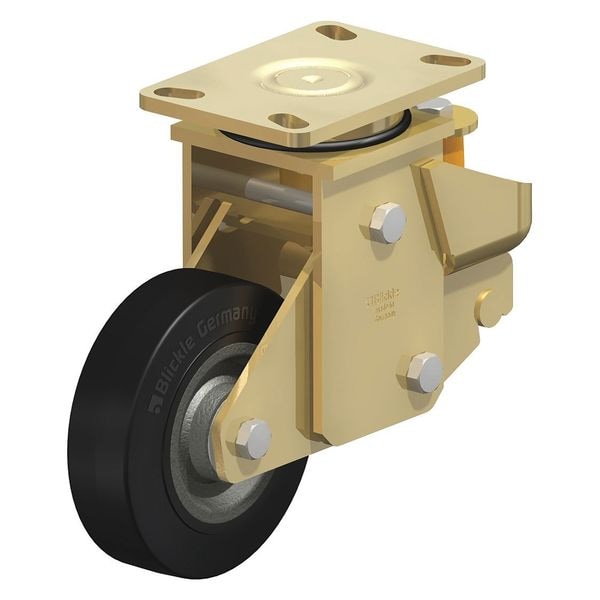

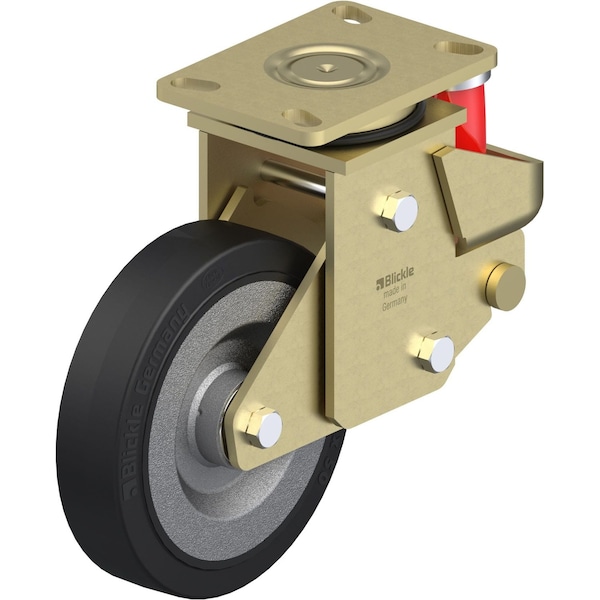

Swivel Plate Cstr, Solid Rbbr, 8", 1320 lb.

Name: Swivel Plate Cstr, Solid Rbbr, 8", 1320 lb.
Brand: Blickle
SKU: G0895848
Price: 428.99 USD
Availability: InStock

428.99

/ea

Free Shipping & Returns

Wheel Dia.

8in

Stem Dia.

No Stem

Caster Brake Included

Caster Sub-Type

Swivel

Load Rating

1,320 lb

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Caster Brake Included: No
Caster Sub-Type: Swivel
Load Rating: 1,320 lb
Number of Wheels: 1
Item: Swivel
Caster Stem Type: No Stem/Plate Included
Tread: Standard
Standards: RoHS, ICWM
Caster Mounting Type: Plate
Inside Bolt Hole Spacing: 2-7/16 in x 4-15/16 in
Tread Color: Black
Application: Retail, Industrial, Commercial
Outside Bolt Hole Spacing: 3-3/8 in x 5-1/4 in
Caster Brake Type: No Brake Included
System of Measurement: Inch
Frame Finish: Zinc Plated, Yellow Passivated
Replacement Wheel: Mfr. No. SE 200/20K
Non-Marking: No
Core Color: Black
Caster Frame Material: Steel
Extended Lead: No
Resistant To: Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range: Heavy-Duty
Includes Thread Guards: No
Max. Spring Deflection: 1 in
Tread Shape: Standard
Series: LSFE Series
ESD Conductive: No
Load Capacity: 610 lb
Number of Mounting Holes: 4
Wheel Core Material: Pressed Steel
Swivel Raceway Type: Single Ball/Tapered Roller Bearing
Wheel/Tread Material: Steel/Polyurethane Elastomer
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 65 Shore A
Operating Temperature Range: -15 Degrees To 175 Degrees F
Maximum Compression Force: 1100 lb
