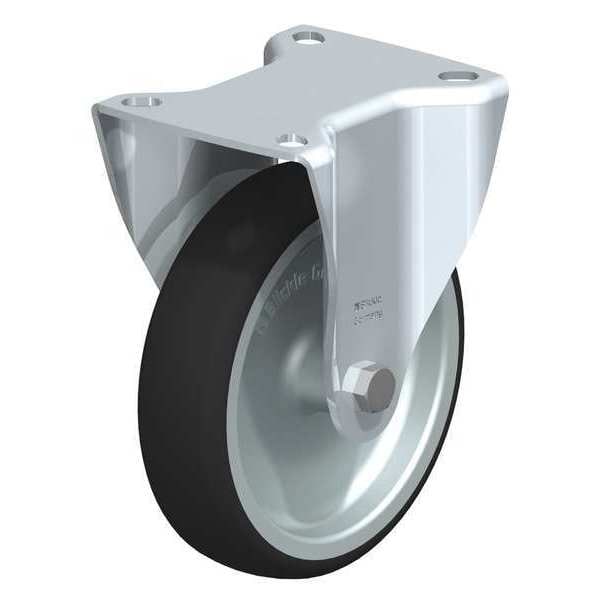

Blickle Rigid Plte Cstr, Polyurthane, 5", 330 lb. B-PATH 125G - main

Rigid Plte Cstr, Polyurthane, 5", 330 lb.

  • Mfr # B-PATH 125G

  • Zoro # G9661788

product price:  $24.49
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake Included
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B-PATH 125G
Zoro #
G9661788
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Overall Height
150 mm
Mounting Bolt Dia.
M8

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Load Capacity
150 kg
Caster Brake Included
No
Standards
RoHS, ICWM
Tread
Standard
Frame Finish
Zinc Plated
Extended Lead
No
Tread Color
Dark Gray
Replacement Wheel
Mfr. No. PATH 125/12G
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
B Series
Includes Thread Guards
No
ESD Conductive
No
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Rigid
