  11. Swivel Plate Pnumtic Caster, 10-7/32", Brk

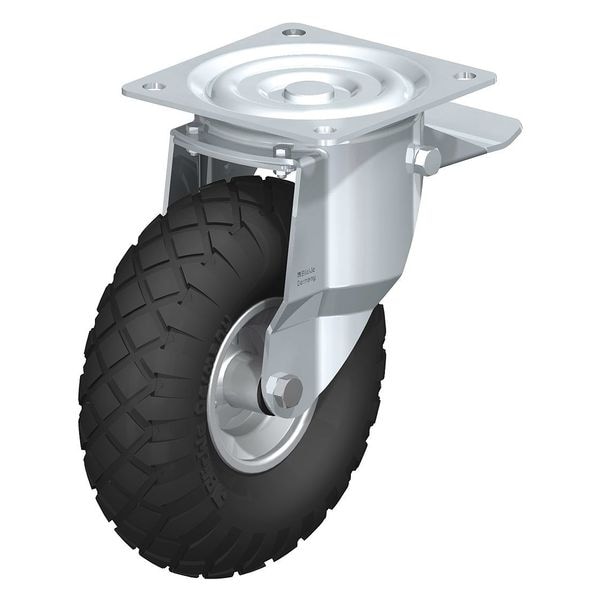

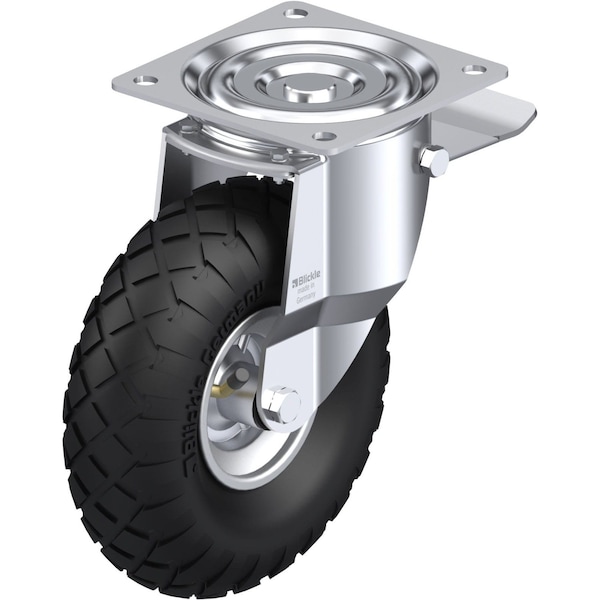

Blickle Swivel Plate Pnumtic Caster, 10-7/32", Brk L-P 263R-ST - main

Swivel Plate Pnumtic Caster, 10-7/32", Brk

  • Mfr # L-P 263R-ST

  • Zoro # G0896012

product price: $290.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Pneumatic
Caster Brake Type
Stop Top Brake (Total Lock)
Wheel Dia.
10.2in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-P 263R-ST
Zoro #
G0896012
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
10.2in
Wheel Width
3.346in
Mounting Plate Size
175 mm x 175 mm
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
M14
Overall Height
12.1in
Stem Dia.
No Stem
Swivel Radius
208 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Pneumatic
Caster Brake Type
Stop Top Brake (Total Lock)
Load Rating
330 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel Hardness Rating
60 Shore A
Number of Mounting Holes
4
Tread Shape
Zig-Zag
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
140 mm x 140 mm
Inside Bolt Hole Spacing
140 mm x 140 mm
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Tread Color
Black
Application
Retail, Industrial, Commercial
Ply
2
Replacement Wheel
Mfr. No. P 263/20-75R
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Tread
Zig-Zag
Includes
Stop-Top Total-Lock Brake
Extended Lead
No
Includes Thread Guards
No
Series
L Series
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range
Medium Duty
ESD Conductive
No
Load Capacity
150 kg
Wheel Core Material
Pressed Steel
Swivel Raceway Type
Double Ball
Operating Temperature Range
-25 Degrees To 50 Degrees C

Description

Swivel With Brake
