Shop BLICKLE

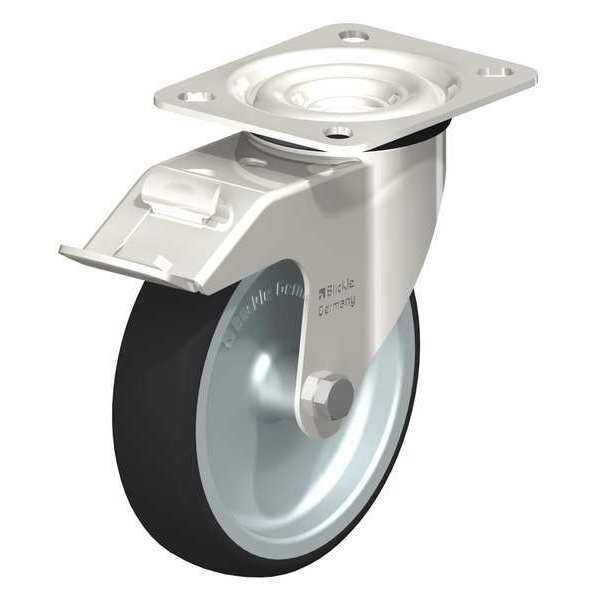

Swivl Plate Cstr, Polyurthane, 5", Brake

  • Mfr # LEX-PATH 125G-FI

  • Zoro # G9660850

product price:  $65.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEX-PATH 125G-FI
Zoro #
G9660850
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Overall Height
150 mm
Swivel Radius
102.5 mm

Details

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Tread Shape
Standard
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Item
Swivel With Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Extended Lead
No
Caster Brake Included
Yes
Includes
Stop-Fix Total-Lock Brake
Core Color
Gray
Caster Frame Material
Stainless Steel
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. PATH 125/12G
Tread
Standard
Swivel Raceway Type
Double Ball
Load Capacity
150 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LEX Series
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Medium Duty
ESD Conductive
No
Wheel Core Material
Nylon
Tread Color
Dark Gray
Wheel Bearing Type
Plain
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
