  11. Swivel Plate Caster w/Total-Lock, Polyur, 5in, 315lb
Shop All Plate Casters
Zoro Select

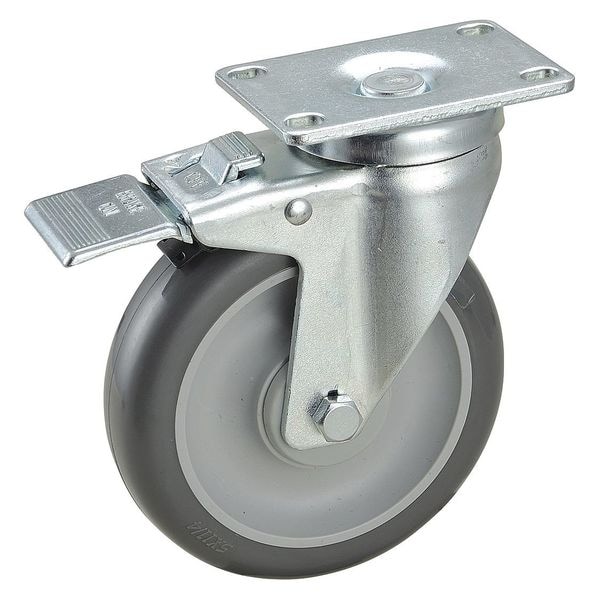

Swivel Plate Caster w/Total-Lock, Polyur, 5in, 315lb

original price: $14.46
8% off
new price: $13.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 6-1/4"
Wheel Dia. 5 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Plate Size 2-5/8" x 3-3/4"
Caster Plate Size 2-5/8" x 3-3/4"
Mounting Bolt Dia. 5/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 6 3/16 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 315 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Non-Marking Yes
Wheel Color Gray
Caster Plate Thickness 1/8"
Thread Guards Yes
Caster Temp. Range -30 Degrees to 180 Degrees F
Plate Thickness 1/8"
Includes Thread guards
Plate Caster Bolt Hole Pattern C
Caster Max. Temp. 180 Degrees F
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Caster Wheel Bearings Ball
Durometer 95 Shore A
Item Debris-Resistant Standard Plate Caster
Caster Frame Material Steel
Frame Finish Zinc Plated
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Min. Temp. -30 Degrees F
Caster Swivel Lock Type Total Lock
Caster Plate Hole Pattern C
Caster Temp. Range Available Yes
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Caster Raceway Double Ball
Caster Product Group Swivel Caster with Total Lock
Core Color Gray
Caster Core Material Polyolefin
Extended Lead No
Caster Brake Type Total Lock Brake
Frame Material Steel
Wheel/Tread Hardness 95 Shore A
Load Rating Range 300 to 999 lb
Swivel Construction Kingpin
Swivel Lock Type Total Lock
Swivel Raceway Type Double Ball
Wheel/Tread Hardness Rating Firm
Wheel Core Material Plastic
Includes Thread Guards Yes
Wheel Bearing Type Precision Ball
Number of Mounting Holes 4
Mounting Plate Bolt Hole Pattern C
Tread Shape Standard
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 315 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
