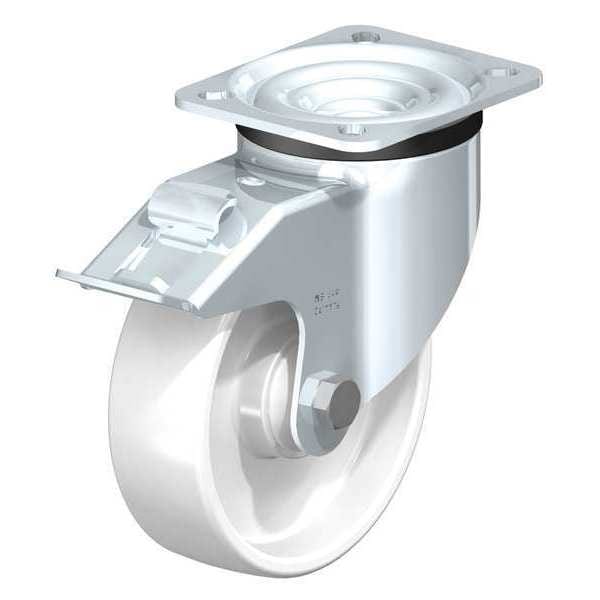

Blickle Swivl Plte Castr, White Nyln, 5", Brake LK-PO 125KA-1-FI - main

Swivl Plte Castr, White Nyln, 5", Brake

  • Mfr # LK-PO 125KA-1-FI

  • Zoro # G9662208

product price:  $44.35
/ea

Key Features

Caster Sub-Type
Swivel
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
125 mm
Wheel Width
40 mm
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-PO 125KA-1-FI
Zoro #
G9662208
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
40 mm
Mounting Bolt Dia.
M8
Overall Height
155 mm
Swivel Radius
110.5 mm
Mounting Plate Thickness
3.5 mm
Mounting Plate Size
85 mm x 100 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
70 Shore D
Tread Shape
Standard
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Brake Included
Yes
Extended Lead
No
Core Color
White
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial, Corrosion Resistance
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. PO 125/10K
Frame Finish
Zinc Plated
System of Measurement
Metric
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
300 kg
Series
LK Series
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Load Rating Range
Medium Duty
Includes Thread Guards
No
Tread Color
White
ESD Conductive
No
Tread
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Medium Heavy Duty Nylon
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel With Brake
