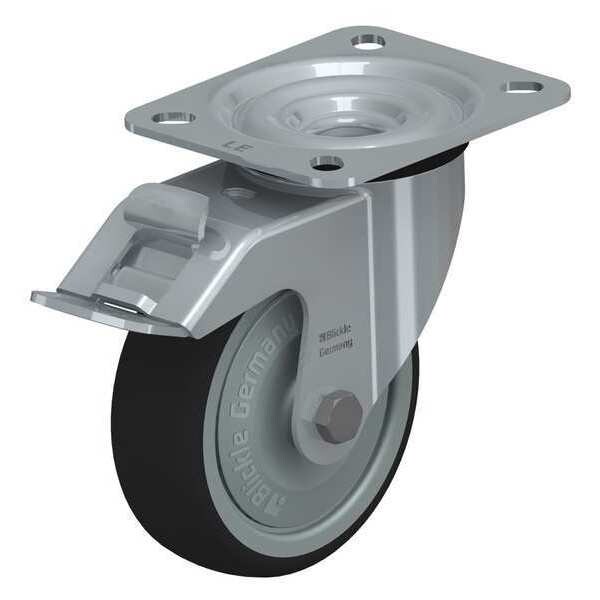

Swivl Plte Cstr, Polyurthane, 4", Brake

Name: Swivl Plte Cstr, Polyurthane, 4", Brake
Brand: Blickle
SKU: G9661849
Price: 40.19 USD
Availability: InStock

40.19

/ea

Caster Sub-Type

Swivel

System of Measurement

Metric

Wheel/Tread Material

Thermoplastic Polyurethane

Wheel Dia.

100 mm

Wheel Width

32 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel With Brake
Caster Sub-Type: Swivel
System of Measurement: Metric
Wheel/Tread Material: Thermoplastic Polyurethane
Caster Mounting Type: Plate
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 94 Shore A
Number of Mounting Holes: 4
Tread Shape: Standard
Caster Frame Material: Steel
Core Color: Gray
Non-Marking: Yes
Number of Wheels: 1
Outside Bolt Hole Spacing: 60 mm x 80 mm
Inside Bolt Hole Spacing: 60 mm x 80 mm
Standards: RoHS, ICWM
Caster Brake Included: Yes
Frame Finish: Zinc Plated
Includes: Stop-Fix Total-Lock Brake
Replacement Wheel: Mfr. No. PATH 100/8K-FK
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type: Stop Fix Brake (Total Lock)
Extended Lead: No
Tread Color: Dark Gray
Accessories: Optional: RI-04.14 (Directional Lock)
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Tread: Standard
Includes Thread Guards: Yes
ESD Conductive: No
Wheel Core Material: Nylon
Load Capacity: 150 kg
Series: LE Series
Load Rating Range: Medium Duty
Swivel Raceway Type: Double Ball
Operating Temperature Range: -25 Degrees To 70 Degrees C

Swivel With Brake
