  11. Swivl Plte Cstr, Polyurthane, 5", 330 lb.

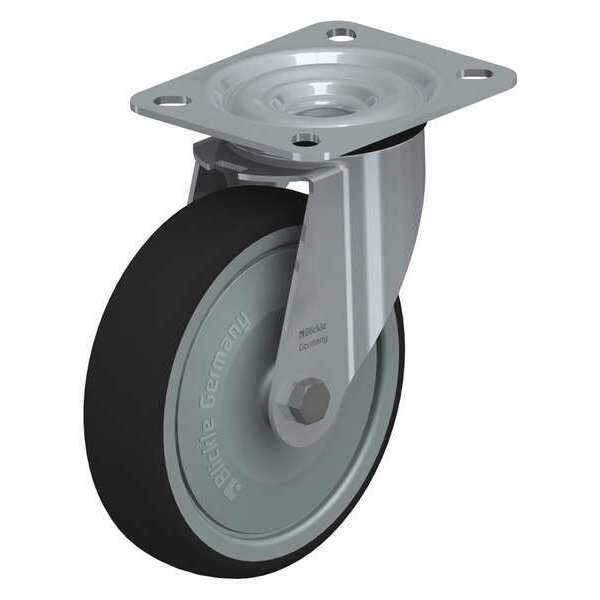

Blickle Swivl Plte Cstr, Polyurthane, 5", 330 lb. LE-PATH 125KF - main

Swivl Plte Cstr, Polyurthane, 5", 330 lb.

  • Mfr # LE-PATH 125KF

  • Zoro # G9661885

product price: $27.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
125 m
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LE-PATH 125KF
Zoro #
G9661885
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 m
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
102.5 mm
Overall Height
150 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Extended Lead
No
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. PATH 125/8K-FK
Series
LE Series
Tread Color
Dark Gray
ESD Conductive
No
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Load Capacity
150 kg
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
Tread
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
