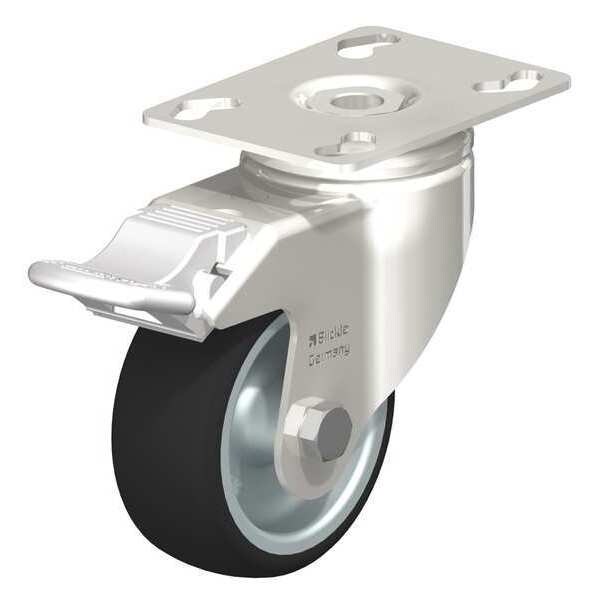

Blickle Swvl Plate Cstr, Plyurthn, 3-1/8", Brake LKPXA-PATH 80G-FI - main

Swvl Plate Cstr, Plyurthn, 3-1/8", Brake

  • Mfr # LKPXA-PATH 80G-FI

  • Zoro # G9660099

product price:  $56.45
/ea

Key Features

Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
32 mm
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-PATH 80G-FI
Zoro #
G9660099
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
80 mm
Wheel Width
32 mm
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
2.25 mm
Mounting Bolt Dia.
M8
Overall Height
111 mm
Swivel Radius
80 mm

Details

Item
Swivel Caster With Brake
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Inside Bolt Hole Spacing
51 mm x 61 mm
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Standards
RoHS, ICWM, NSF
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Frame Finish
Stainless Steel
Includes
Stop-Fix Total-Lock Brake
Replacement Wheel
Mfr. No. PATH 80/12G
System of Measurement
Metric
Load Rating Range
Medium Duty
Swivel Raceway Type
Double Ball
Tread Color
Dark Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Includes Thread Guards
No
ESD Conductive
No
Series
LKPXA Series
Wheel Core Material
Nylon
Load Capacity
120 kg
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
