Shop BLICKLE

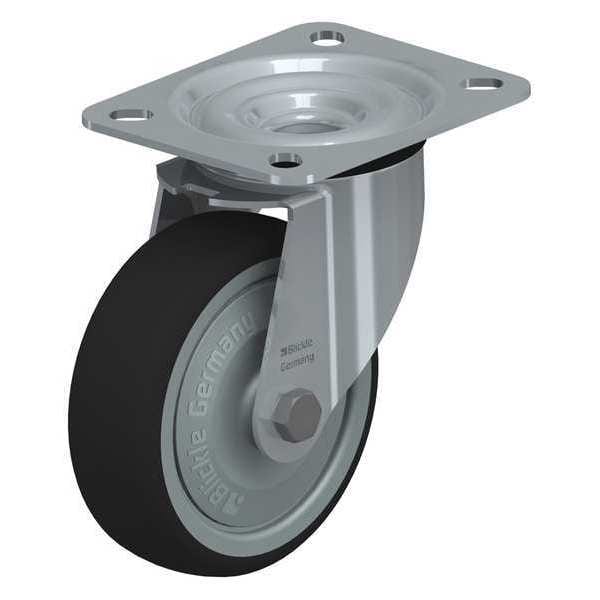

Swivl Plte Cstr, Polyurthane, 4", 330 lb.

  • Mfr # LE-PATH 100KF

  • Zoro # G9661830

product price:  $28.15
/ea

Key Features

Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
100 mm
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 100KF
Zoro #
G9661830
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
86 mm
Overall Height
125 mm

Details

Item
Swivel
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Caster Brake Included
No
Caster Sub-Type
Swivel
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Outside Bolt Hole Spacing
60 mm x 80 mm
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. PATH 100/8K-FK
System of Measurement
Metric
Tread Color
Dark Gray
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
Tread
Standard
ESD Conductive
No
Wheel Core Material
Nylon
Series
LE Series
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Load Capacity
150 kg
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
