Shop BLICKLE

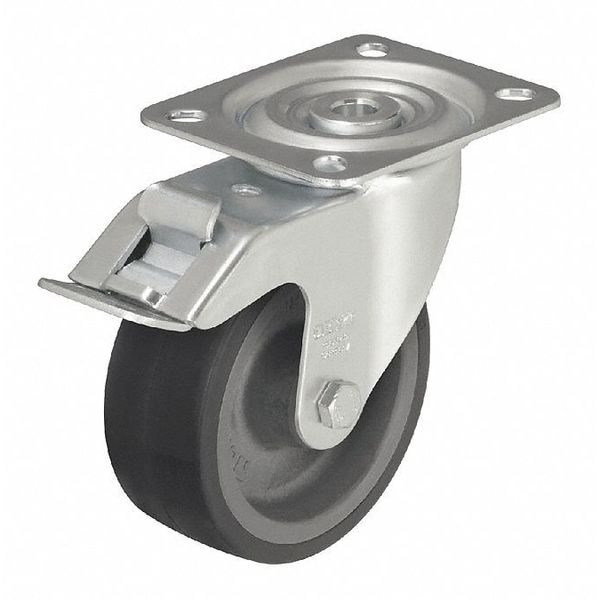

Swvl Plate Cstr, Silicone, 4", 220 lb., Blk

  • Mfr # LI-POSI 100G-FI

  • Zoro # G9663915

product price:  $97.35
/ea

Key Features

System of Measurement
Metric
Wheel/Tread Material
Heat Resistant TempLine Silicone Rubber
Wheel Dia.
100 mm
Wheel Width
40 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LI-POSI 100G-FI
Zoro #
G9663915
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
40 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
86 mm
Overall Height
125 mm
Mounting Plate Size
85 mm x 100 mm

Details

Item
Swivel With Brake
System of Measurement
Metric
Wheel/Tread Material
Heat Resistant TempLine Silicone Rubber
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Includes
Stop-Fix Total-Lock Brake
Application
High Temperature, Food Industry / Bakeries
Extended Lead
No
Non-Marking
Yes
Caster Brake Included
Yes
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. POSI 100/12G
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Capacity
100 kg
Includes Thread Guards
No
Tread Color
Black
Series
LI Series
Tread
Standard
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Load Rating Range
Medium Duty
ESD Conductive
No
Wheel Core Material
Heat Resistant Nylon
Resistant To
High Temperature, Very High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-25 Degrees To 250 Degrees C

Description

Swivel With Brake
