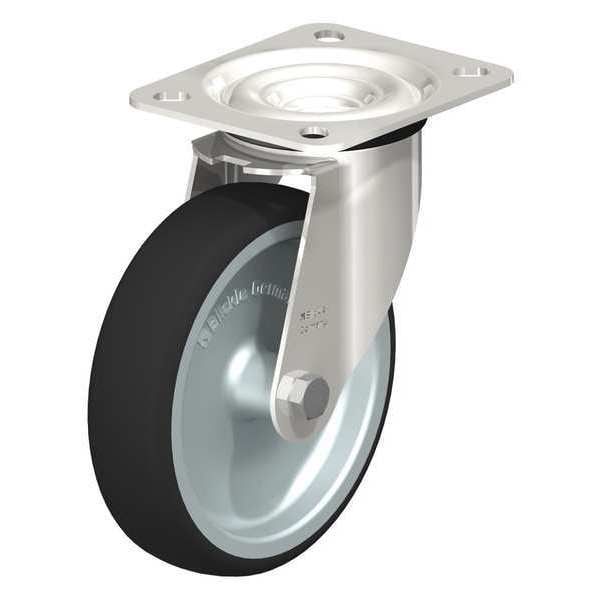

Swivl Plate Cstr, Polyurthane, 5", 330 lb.

Name: Swivl Plate Cstr, Polyurthane, 5", 330 lb.
Brand: Blickle
SKU: G9660869
Price: 62.89 USD
Availability: InStock

62.89

/ea

Caster Sub-Type

Swivel

System of Measurement

Metric

Wheel/Tread Material

Thermoplastic Polyurethane

Wheel Width

32 mm

Caster Mounting Type

Plate

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Swivel
Caster Sub-Type: Swivel
System of Measurement: Metric
Wheel/Tread Material: Thermoplastic Polyurethane
Caster Mounting Type: Plate
Wheel Bearing Type: Plain
Tread Shape: Standard
Caster Frame Material: Stainless Steel
Non-Marking: Yes
Number of Wheels: 1
Outside Bolt Hole Spacing: 60 mm x 80 mm
Inside Bolt Hole Spacing: 60 mm x 80 mm
Caster Brake Type: No Brake Included
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead: No
Core Color: Gray
Standards: RoHS, ICWM
Replacement Wheel: Mfr. No. PATH 125/12G
Caster Brake Included: No
Frame Finish: Stainless Steel
Tread Color: Dark Gray
Includes Thread Guards: No
Load Capacity: 150 kg
Wheel Core Material: Nylon
Tread: Standard
Series: LEX Series
Load Rating Range: Medium Duty
Number of Mounting Holes: 4
Swivel Raceway Type: Double Ball
ESD Conductive: No
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating: 94 Shore A
Operating Temperature Range: -25 Degrees To 70 Degrees C

Swivel
