  6. Swvl Plt Castr, Solid Rbr, 6-5/16", 700 lb.

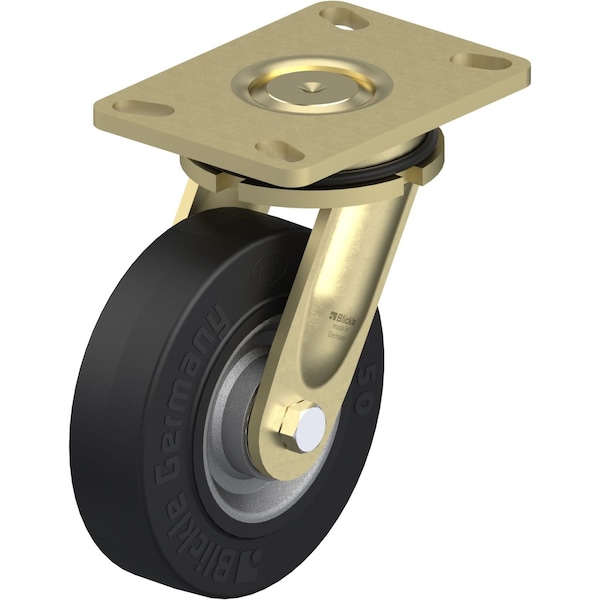

Blickle Swvl Plt Castr, Solid Rbr, 6-5/16", 700 lb. LS-SE 160K-16 - main

Swvl Plt Castr, Solid Rbr, 6-5/16", 700 lb.

  • Mfr # LS-SE 160K-16

  • Zoro # G0894402

product price:  $218.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel/Solid Rubber
Wheel Width
2in
Load Rating
990 lb.
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LS-SE 160K-16
Zoro #
G0894402
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Overall Height
8.07in
Wheel Dia.
6-5/16in
Stem Dia.
No Stem
Swivel Radius
5-9/32 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel/Solid Rubber
Load Rating
990 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Replacement Wheel
Mfr. No. SE 160/20K
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated, Yellow Passivated
Tread Color
Black
Tread
Standard
Extended Lead
No
Series
LS Series
Accessories
Optional: RI-LS-16 (Directional Lock)
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
1000 lb
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Wheel Core Material
Pressed Steel
Includes Thread Guards
No
ESD Conductive
No
Load Rating Range
Heavy-Duty
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
