  11. Swvl Plt Cstr, Rubr, 11-13/16", 2200 lb., D

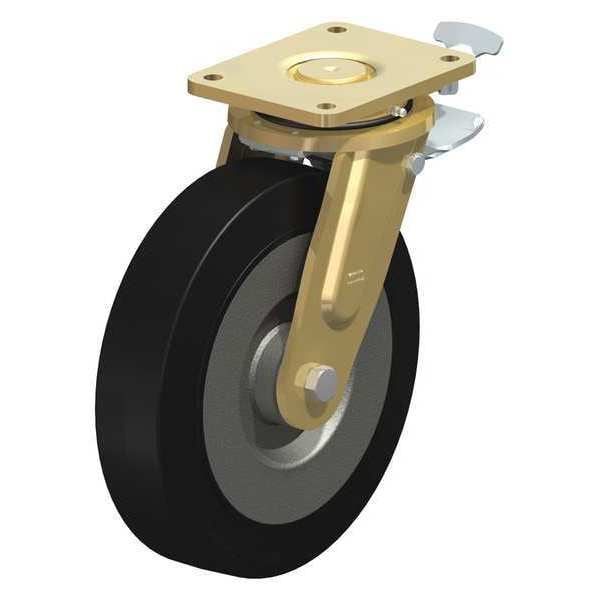

Blickle Swvl Plt Cstr, Rubr, 11-13/16", 2200 lb., D LS-SE 300K-ST - main

Swvl Plt Cstr, Rubr, 11-13/16", 2200 lb., D

  • Mfr # LS-SE 300K-ST

  • Zoro # G9663696

product price: $666.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Total Lock
Wheel Dia.
12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-SE 300K-ST
Zoro #
G9663696
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
12 in
Wheel Width
3 in
Mounting Height
14 in
Mounting Plate Size
140 mm x 175 mm
Mounting Plate Thickness
15 mm
Mounting Bolt Dia.
9/16 in
Swivel Radius
235 mm
Overall Height
355 mm
Bolt Hole Spacing - Width
4.125 in
Bolt Hole Spacing - Length
5.5 in
Mounting Plate Length
175 mm
Mounting Plate Width
140 mm
Overall Wheel Width
3 in
For Axle Dia.
16 mm

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
105 mm x 140 mm
Inside Bolt Hole Spacing
105 mm x 140 mm
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. SE 300/30K
Caster Brake Included
Yes
Includes
Stop-Top Total-Lock Brake
Application
Retail, Industrial, Commercial
Extended Lead
No
Standards
RoHS, ICWM
Wheel Core Material
Pressed Steel
Series
LS Series
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Includes Thread Guards
No
Load Capacity
1000 kg
Tread
Standard
ESD Conductive
No
Load Rating Range
Extra-Heavy Duty
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Hole
Brake Location
Face
Wheel Bearing Material
Steel
Load Capacity - Maximum
2,205 lb
Mounting Plate Shape
Rectangle
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
