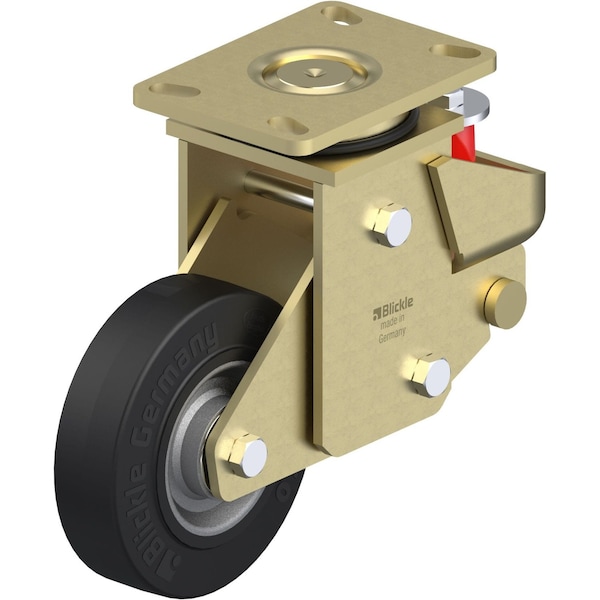

Swvl Plt Cstr, Solid Rbr, 6-5/16", 1000 lb.

Name: Swvl Plt Cstr, Solid Rbr, 6-5/16", 1000 lb.
Brand: Blickle
SKU: G0895890
Price: 412.99 USD
Availability: InStock

412.99

/ea

Free Shipping & Returns

Wheel Width

2in

Caster Sub-Type

Swivel

Stem Dia.

No Stem

Overall Height

9.65in

Caster Brake Included

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: LSFE-SE 160K-16
Zoro #: G0895890
UPC #: -
Country of Origin: Germany
Caster Sub-Type: Swivel
Caster Brake Included: No
Load Rating: 1,000 lb
Item: Plate Caster
Number of Wheels: 1
Caster Stem Type: No Stem/Plate Included
Inside Bolt Hole Spacing: 2-7/16 in x 4-15/16 in
Non-Marking: No
Tread Color: Black
Standards: RoHS, ICWM
System of Measurement: Inch
Outside Bolt Hole Spacing: 3-3/8 in x 5-1/4 in
Tread: Standard
Application: Retail, Industrial, Commercial
Replacement Wheel: Mfr. No. SE 160/20K
Caster Brake Type: No Brake Included
Frame Finish: Zinc Plated, Yellow Passivated
Caster Mounting Type: Plate
Core Color: Black
Extended Lead: No
Caster Frame Material: Steel
Load Capacity: 390 lb
Number of Mounting Holes: 4
Wheel Core Material: Pressed Steel
Series: LSFE Series
Swivel Raceway Type: Single Ball/Tapered Roller Bearing
Resistant To: Chemical Resistance To Many Aggressive Substances, Except Oils
Max. Spring Deflection: 1 in
Includes Thread Guards: No
Tread Shape: Standard
Load Rating Range: Heavy-Duty
ESD Conductive: No
Wheel/Tread Material: Steel/Polyurethane Elastomer
Wheel Bearing Type: Precision Ball
Wheel Hardness Rating: 65 Shore A
Operating Temperature Range: -15 Degrees To 175 Degrees F
Maximum Compression Force: 1100 lb
Load Capacity - Maximum: 990 lb
