  6. Swivel Plate Caster, PU, 4", 770 lb., Number of Wheels: 1

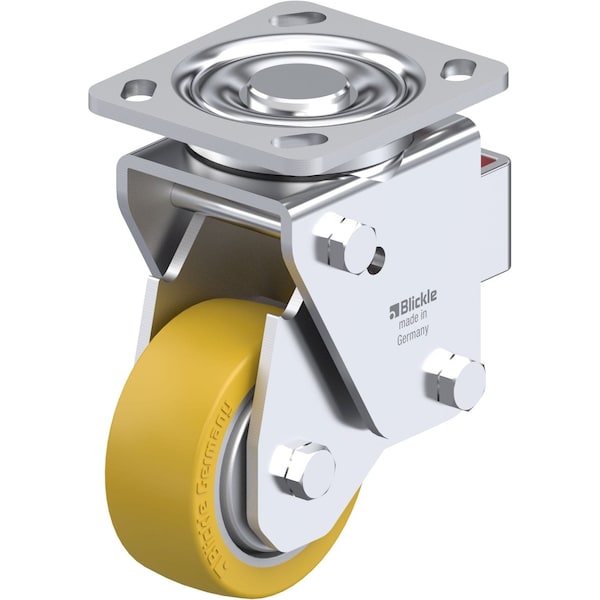

Blickle Swivel Plate Caster, PU, 4", 770 lb., Number of Wheels: 1 LHF-ALTH 101K-14-FA - main

Swivel Plate Caster, PU, 4", 770 lb., Number of Wheels: 1

  • Mfr # LHF-ALTH 101K-14-FA

  • Zoro # G0895233

product price:  $202.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Wheel Width
1-9/16in
Load Rating
770 lb.
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LHF-ALTH 101K-14-FA
Zoro #
G0895233
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-9/16in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Wheel Dia.
4in
Overall Height
6.89in
Swivel Radius
3-1/4 in

Details

Item
Swivel Caster
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Load Rating
770 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. ALTH 101/15K
Frame Finish
Zinc Plated
System of Measurement
Inch
Includes
Steel Spring Shock Absorbing
Standards
RoHS, ICWM
Tread Color
Light Brown
Caster Frame Material
Steel
Extended Lead
No
Max. Spring Deflection
3/4 in
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Load Capacity
260 lb
Includes Thread Guards
No
Wheel Core Material
Aluminum
Load Rating Range
Heavy-Duty
ESD Conductive
No
Series
LHF Series
Maximum Compression Force
440 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
