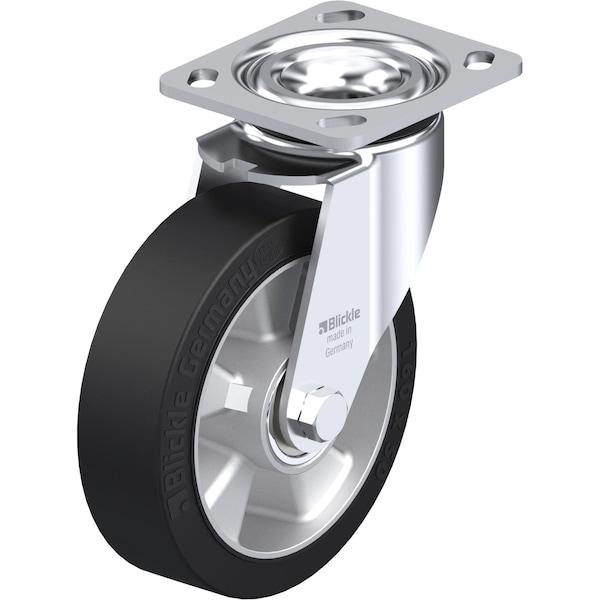

Blickle Swvl Plt Cstr, Solid Rubr, 6-5/16", 880 lb. LEH-ALEV 160K-14 - main

Swvl Plt Cstr, Solid Rubr, 6-5/16", 880 lb.

  • Mfr # LEH-ALEV 160K-14

  • Zoro # G0893273

product price:  $75.65
/ea
Free Shipping & Returns

Key Features

Overall Height
7.87in
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Wheel Width
2in
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEH-ALEV 160K-14
Zoro #
G0893273
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
7.87in
Stem Dia.
No Stem
Wheel Width
2in
Wheel Dia.
6-5/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-13/32 in
Mounting Plate Thickness
0.197 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Caster Sub-Type
Swivel
Item
Swivel Caster
Load Rating
880 lb.
Number of Wheels
1
System of Measurement
Inch
Frame Finish
Zinc Plated
Tread
Standard
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALEV 160/20K
Non-Marking
No
Core Color
Silver
Caster Brake Type
No Brake Included
Tread Color
Black
Application
Retail, Industrial, Commercial
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Extended Lead
No
Tread Shape
Standard
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Series
LEH Series
Number of Mounting Holes
4
Wheel Core Material
Aluminum
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity
880 lb
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
