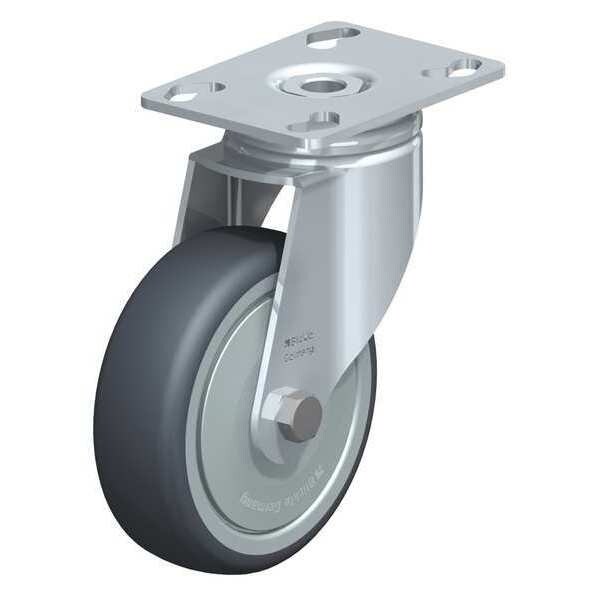

Swvl Plte Cstr, TPR Rubbr, 4", 240 lb.

  • Mfr # LKPA-TPA 101KF

  • Zoro # G9661316

product price:  $26.29
/ea

Key Features

System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Width
1 1/4 in
Mounting Height
5 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPA-TPA 101KF
Zoro #
G9661316
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 3/8 in
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
90 mm
Overall Height
136 mm
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
61 mm
Bolt Hole Spacing - Length
2.969 in
Inside Slot Spacing - Width
45 mm
Outside Slot Spacing - Length
75 mm
For Axle Dia.
8 mm
Mounting Plate Length
90 mm
Outside Slot Spacing - Width
51 mm
Mounting Plate Width
66 mm

Details

Item
Plate Caster
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Caster Sub-Type
Swivel
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Extended Lead
No
Replacement Wheel
Mfr. No. TPA 101/8K-FK
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Series
LKPA Series
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Load Capacity
110 kg
Wheel Core Material
Polypropylene
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
Tread Color
Gray
Tread
Standard
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Load Capacity - Maximum
605 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
