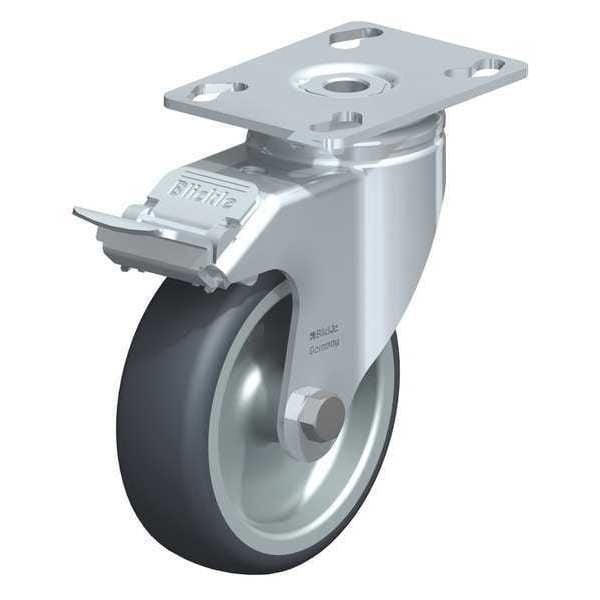

Blickle Swvl Plte Cstr, TPR Rubbr, 4", Brake LKPA-TPA 101G-FI - main

Swvl Plte Cstr, TPR Rubbr, 4", Brake

  • Mfr # LKPA-TPA 101G-FI

  • Zoro # G9661307

product price:  $24.59
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPA-TPA 101G-FI
Zoro #
G9661307
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
3 mm
Overall Height
136 mm
Mounting Bolt Dia.
M8
Swivel Radius
90 mm

Details

Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Inside Bolt Hole Spacing
51 mm x 61 mm
Item
Swivel Caster With Brake
Includes
Stop-Fix Total-Lock Brake
Outside Bolt Hole Spacing
45 mm x 75 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. TPA 101/12G
Caster Frame Material
Steel
Standards
RoHS, ICWM, NSF
Frame Finish
Zinc Plated
Extended Lead
No
Caster Brake Included
Yes
System of Measurement
Metric
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
110 kg
Wheel Core Material
Polypropylene
Load Rating Range
Medium Duty
Tread
Standard
Series
LKPA Series
ESD Conductive
No
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Tread Color
Gray
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel With Brake
