Shop BLICKLE

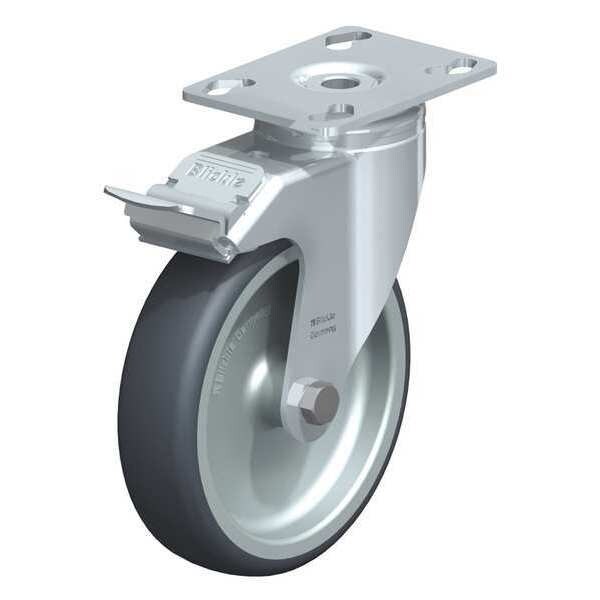

Swvl Plte Cstr, TPR Rubbr, 5", Brake

  • Mfr # LKPA-TPA 126G-FI

  • Zoro # G9661596

product price:  $25.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Width
32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPA-TPA 126G-FI
Zoro #
G9661596
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
3 mm
Mounting Bolt Dia.
M8
Swivel Radius
102.5 mm
Wheel Dia.
125 mm
Overall Height
161 mm

Details

Item
Swivel With Brake
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Stop Fix Brake (Total Lock)
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Inside Bolt Hole Spacing
51 mm x 61 mm
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. TPA 126/12G
Number of Wheels
1
Outside Bolt Hole Spacing
45 mm x 75 mm
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM, NSF
Extended Lead
No
Wheel Core Material
Polypropylene
Load Rating Range
Medium Duty
Tread Shape
Standard
Tread
Standard
Series
LKPA Series
ESD Conductive
No
Swivel Raceway Type
Double Ball
Tread Color
Gray
Includes Thread Guards
No
Load Capacity
120 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel With Brake
