Blickle

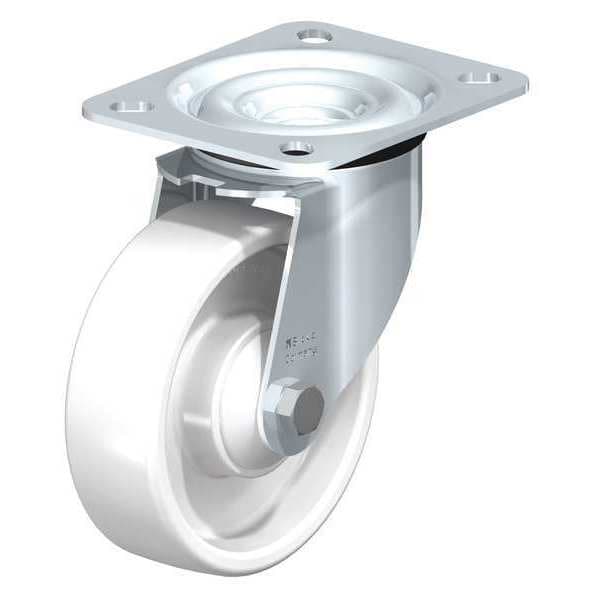

Swvl Plte Cstr, White Nylon, 4", 330 lb.

product price: $17.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Medium Heavy Duty Nylon
  • Number of Wheels 1
See all product information

Product Information

Dimensions

Overall Height 125 mm
Wheel Dia. 100 mm
Wheel Width 37 mm
Mounting Bolt Dia. M8
Swivel Radius 86 mm
Caster Plate Size 85 mm x 100 mm

Details

Caster Brake Included No
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Medium Heavy Duty Nylon
Number of Wheels 1
Item Swivel Plate Caster
Inside Bolt Hole Spacing 60 mm x 80 mm
Extended Lead No
Caster Frame Material Steel
Non-Marking Yes
Caster Swivel Lock Type No Lock Included
Frame Finish Zinc Plated
Core Color White
Caster Raceway Double Ball
Outside Bolt Hole Spacing 60 mm x 80 mm
Caster Temp. Range -25 Degrees To 80 Degrees C
Replacement Wheel Mfr. No. PO 100/8K
Caster Plate Thickness 2.5 mm
Caster Wheel Bearings Precision Ball
Application Retail, Industrial, Commercial, Corrosion Resistance
Standards RoHS, ICWM
Caster Product Group Swivel Caster
System of Measurement Metric
Load Capacity 150 kg
Swivel Raceway Type Double Ball
Wheel/Tread Hardness 70 Shore D
Includes Thread Guards No
ESD Conductive No
Tread Color White
Series LE Series
Tread Standard
Caster Mounting Type Plate
Accessories Optional: RI-04.14 (Directional Lock)
Wheel Core Material Nylon
Resistant To High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes 4
Tread Shape Standard
Caster Break Type No Brake Included

Description

Swivel
