  11. Swivel Plate Caster, Rubber, 3 in, 100 lb, D
Shop All Plate Casters
Zoro Select

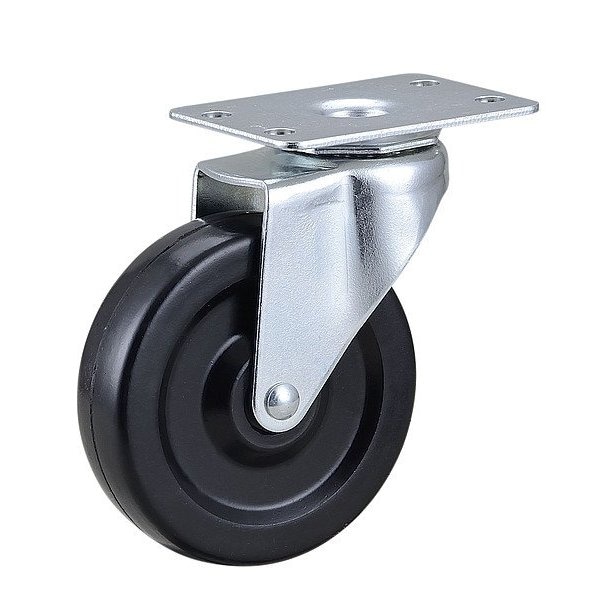

Swivel Plate Caster, Rubber, 3 in, 100 lb, D

product price: $3.85
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Rubber
See all product information

Product Information

Dimensions

Overall Height 3-11/16"
Wheel Dia. 3 in
Wheel Width 7/8 in
Stem Dia. No Stem
Caster Plate Size 1-7/8" x 2-5/8"
Plate Size 1-7/8" x 2-5/8"
Mounting Bolt Dia. 1/4 in
Mounting Plate Size 1 7/8 in x 2 5/8 in
Mounting Height 3 11/16 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Rubber
Load Rating 100 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Wheel Bearings Delrin
Caster Raceway Double Ball
Frame Material Steel
Frame Finish Zinc Plated
Outside Bolt Hole Spacing 15/16 in x 2-1/8 in
Caster Plate Thickness 5/64"
Plate Caster Bolt Hole Pattern D
Caster Product Group Swivel Caster
Caster Plate Hole Pattern D
Caster Core Material Rubber
Durometer 90 Shore A
Inside Bolt Hole Spacing 15/16 in x 2-1/8 in
Plate Thickness 5/64"
Wheel Color Black
Thread Guards No
Core Color Black
Caster Frame Material Steel
Item Standard Plate Caster
Caster Temp. Range Available No
Caster Swivel Lock Type No Lock Included
Features Corrosion Resistant
Caster Brake Type No Brake Included
Non-Marking No
Includes Thread Guards No
Swivel Lock Type No Lock Included
Number of Mounting Holes 4
Tread Shape Standard
Mounting Plate Bolt Hole Pattern D
Wheel Bearing Type Delrin
Swivel Construction Kingpin
Swivel Raceway Type Double Ball
Wheel Core Material Rubber
Load Rating Range 0 to 299 lb
Wheel/Tread Hardness Rating Soft
Wheel/Tread Hardness 85 Shore A
Wheel/Tread Material Rubber
Wheel/Tread Color Black

Description

Swivel, Standard Plate Caster, Load Rating 100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
