Shop BLUE DEF

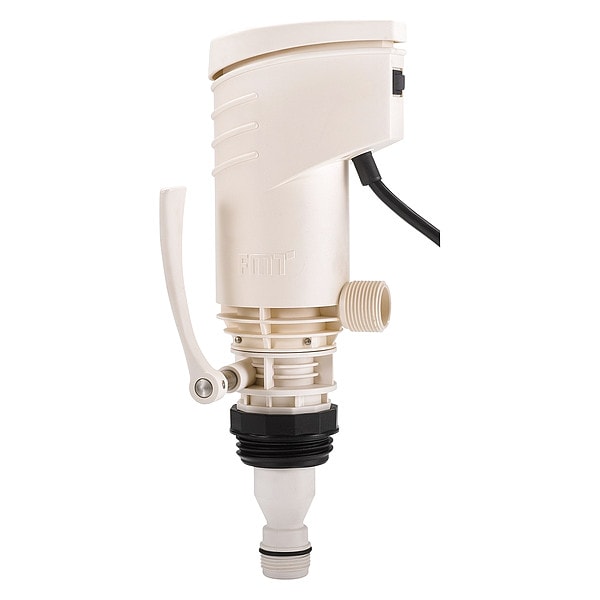

Electric Operated Drum Pump, 120VAC, 60 Hz

  • Mfr # DEFDP120P

  • Zoro # G6534689

product price:  $413.92
/ea
Free Shipping & Returns

Key Features

For Use With
Diesel Exhaust Fluid
Includes
120V ELECTRIC DRUM DEF PUMP ONLY
Motor Type
Axial Gear
Power Source
Corded Electric
Outlet Size
1"
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DEFDP120P
Zoro #
G6534689
UPC #
074804070484
Country of Origin
Czechia

Dimensions

Outlet Size
1"
Height
11"
Inlet Size
1" NPT
Suction Tube Outlet I.D. Size
3/4"
Min. Length
37"
Discharge Tube Outlet ID Size
3/4"
Discharge Size FPT (In.)
1
Length
4"
Discharge Tube Outlet OD Size
3/4"
Suction Tube Outlet O.D. Size
3/4"
Manufacturers Warranty Length
1 yr.
Width
5"
Cord Length
66 in
For Container Size
55 gal
Adapter Connection Diameter
2 in

Details

For Use With
Diesel Exhaust Fluid
Item
Electric Drum Pump
Includes
120V ELECTRIC DRUM DEF PUMP ONLY
Motor Type
Axial Gear
Power Source
Corded Electric
Wetted Materials
PA6
Voltage
120VAC
Motor Enclosure
PA6
Metered
No
Motor RPM
10,000 RPM
Piston Material
Polyethylene
Hz
60
Max. Pressure
23 psi
HP
1/2
Clamp Style
Pinch
Hose Material
EPDM
Self-Priming
No
Duty
Continuous Operation
GPM
8 to 10
Max. Head
8 ft.
Max. GPM for Water
10
Housing Material
Nylon
Phase
Single
Full Load Amps
3.5 A
Features
Thermal Protection
Thermal Protection
Yes
DEF Compatible
Yes
Discharge Tubing Material
EPDM
Max. Liquid Temp.
311 Degrees F
Suction Tube Type
Constant
Min. Fluid Temp.
12 Degrees F
Seal Material
FKM
For Media Type
DEF
Motor HP
1/2 hp
Pump Connection Type
BSP
Duty Cycle
Intermittent
For Container Type
Drum
Max. Fluid Temp.
95 Degrees F
Runs Dry
No
Discharge Connection Type
BSP
Agency Compliance
CSA
Compatible Chemicals
DEF
Includes Suction Tube
No
Includes Bung Adapter
Yes
Diesel Exhaust Fluid Compatible
Yes
Frequency (Hz)
60 Hz
Housing Material - Pumps
HDPE
Number of Phases
1
Variable Speed
No
Max. Flow Rate
12.6 gpm
Includes Nozzle
No
Includes Discharge Hose
No
Max. Head - Pumps
8 1/5 ft
Discharge Tube Outlet ID
3/4 in
Pump Connection ID
1 in
Food Grade
No
Pump Connection OD
1 in
Discharge Tube Outlet OD
3/4 in
Explosion Proof
No
Rated Voltage
120 V AC
Grease
NT
Gear Lube
NT
Pump Technology
Gear
Motor Enclosure Design
Totally Enclosed Fan Cooled
Includes Spout
No
Mount Type
Bung
Full Load Current
3.5
Compatible NLGI Viscosity Grade
Not Specified
Motor Horsepower
1/2 hp
Nozzle Fluid Compatibility
DEF
Maximum Fluid Temperature
95 Degrees F
Frequency
60 Hz
Meter Type Included
No Meter Included
Filter Included
Particulate Filter
Plug Type
NEMA 5-15
Minimum Fluid Temperature
12 Degrees F
Chemical Compatibility
DEF
Standards
CSA
Maximum Head
8 3/16 ft
Static Protection
Grounding Line Included
Container Cover Type Included
No Cover Included
Includes Follower Plate
No Follower Plate Included
Maximum Head Pressure
21.32 psi
Maximum Flow Rate
12.6 gpm
Wetted Material
PA6
Hazardous Location Class
Not Rated
Motor Speed
10,000 RPM

Description

Electric Drum Pump, Hose Inside Dia. Not Applicable, Max. Outlet Pressure Not Applicable, For Use With Diesel Exhaust Fluid, Rated Voltage 120 V AC, Plug Type NEMA 5-15, Pump Connection ID 1 in, Suction Tube OD Not Applicable, Hose Length Not Applicable, Suction Tube Length Not Applicable, Cord Length 66 in, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Not Applicable, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
