  11. Blue Sea 7059 30A Push Button Thermal with Quick Connect Terminals
Blue Sea Systems Blue Sea 7059 30A Push Button Thermal with Quick Connect Terminals 7059 - main

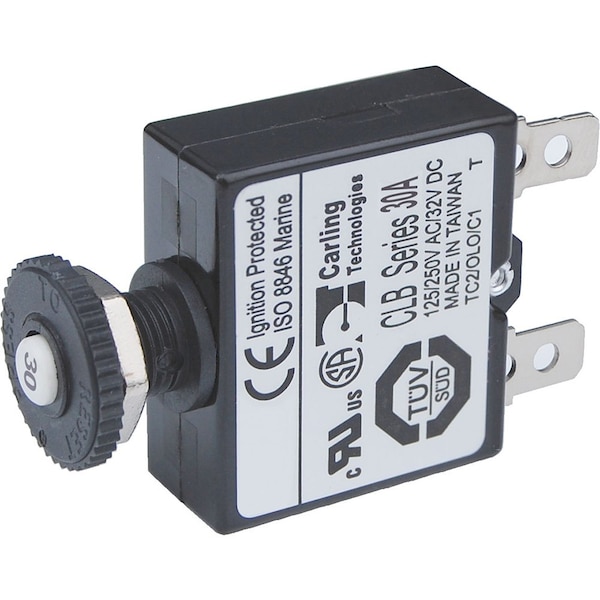

Blue Sea 7059 30A Push Button Thermal with Quick Connect Terminals

  • Mfr # 7059

  • Zoro # G303532939

product price: $6.55
/ea
Sold in multiples of 2 for $13.10

Key Features

Mounting
Panel Mount 3/8-27 UNS
Circuit Breaker Type
Thermal trip, manual push-button reset only
Amperage
30A
Interrupt Capacity
3000A at 14.7V, 2500A at 28V
Terminal Type
1/4 Male Quick Connect
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7059
Zoro #
G303532939
UPC #
632085070595
Country of Origin
Mexico

Details

Mounting
Panel Mount 3/8-27 UNS
Circuit Breaker Type
Thermal trip, manual push-button reset only
Amperage
30A
Interrupt Capacity
3000A at 14.7V, 2500A at 28V
Terminal Type
1/4 Male Quick Connect
Meets
CE Marked, ISO 8846, TUV certified, UL 1077, UL 1500
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
60°C
Maximum Voltage
32V DC
Screw Terminal Torque
0.68 Nm

Description

7059
Push Button Thermal with Quick Connect Terminals
30A
  • Ideal for 24-hour circuit protection
  • Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels
  • Push to reset operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Ignition protected - Safe for installation aboard gasonline powered boats
  • With male quick connect terminals
