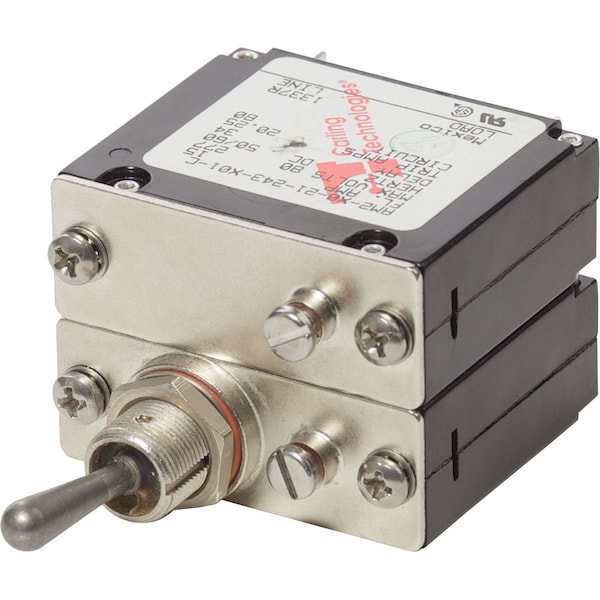

Blue Sea 7312 COTS Military Grade A-Series 15 Amp
- Mfr # 7312
- Zoro # G002943135
product price:
$
105.99
/ea
Free Shipping & Returns
Key Features
Circuit Breaker Type
Magnetic Hydraulic, Trip free
Mounting Boss
1/2-32 Hex Nut SS
Maximum Operating Temperature
85°C
Amperage
15A
Minimum Operating Temperature
-40°C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7312
- Zoro #
- G002943135
- UPC #
- 632085073121
- Country of Origin
- Mexico
- Circuit Breaker Type
- Magnetic Hydraulic, Trip free
- Mounting Boss
- 1/2-32 Hex Nut SS
- Maximum Operating Temperature
- 85°C
- Amperage
- 15A
- Minimum Operating Temperature
- -40°C
- Mounting Screw Torque
- 0.79 Nm
- Mounting Nut Torque
- 3.39 Nm
- Screw Terminal Torque
- 1.58 Nm
- Maximum Voltage
- 277V AC, 65V DC
- Meets
- CSA certified, UL 1077
- Mounting Screw
- #6-32 SS
- Actuator Style
- Metal Toggle
- Switching Cycles
- 6000 Electrical, 4000 Mechanical
- Interrupt Capacity
- 1500A AC, 7500A DC
- Terminal Screws
- #10-32 SS
- Poles
- 2
Description
7312 COTS Military Grade A-Series 15 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 15A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
