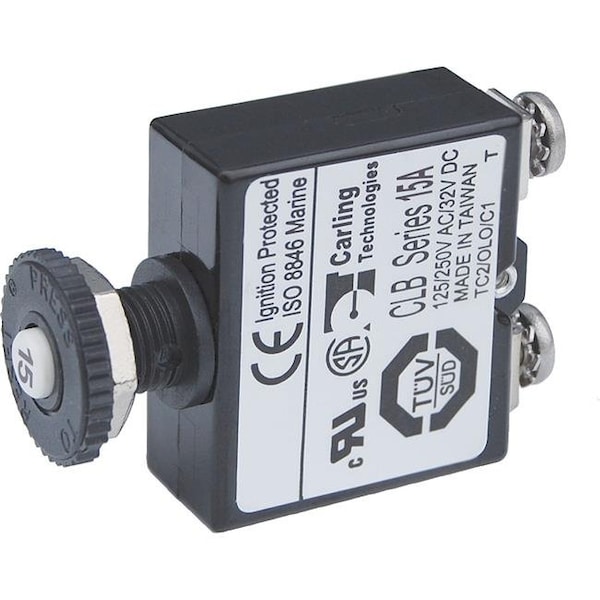

Blue Sea Systems Circuit Breaker, 15A, Not Rated, 3kA at 14.7V DC 2133 - main

Circuit Breaker, 15A, Not Rated, 3kA at 14.7V DC

  • Mfr # 2133

  • Zoro # G703921005

product price: $31.29
/ea

Key Features

Amps
15A
AC Voltage Rating
Not Rated
Circuit Breaker Actuator
Push Button
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
3kA at 14.7V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2133
Zoro #
G703921005
UPC #
632085021337
Country of Origin
China

Dimensions

Width
1.379 in
Depth
0.571 in
Height
2.30 in

Details

Item
Circuit Breaker
Amps
15A
AC Voltage Rating
Not Rated
Circuit Breaker Actuator
Push Button
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
3kA at 14.7V DC
Trip Type
Thermal
Terminal Connection
Screw
DC Voltage Rating
32V DC

Description

Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.

Features
  • Push Button Reset Only Screw Terminal Circuit Breaker
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held "ON" during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
Specifications
  • Amperage: 15A
  • Maximum Voltage: 32V DC
  • Mounting: Panel Mount 3/8-27 UNS
  • Circuit Breaker Type: Thermal trip, manual push-button reset only
  • Terminal Type: #8 Screw
  • Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
  • Minimum Operating Temperature: -10° C
  • Maximum Operating Temperature: 60° C
  • Screw Terminal Torque: 6 in-lb (0.68 Nm)
  • Weight: 0.2 lbs
