Circuit Breaker, ATO/ATC Series, 30A, Not Rated, 2kA at 28V DC
Mfr # 7068
Zoro # G002943432
product price:
$
11.45
/ea
Key Features
Series
ATO/ATC
Amps
30 A
AC Voltage Rating
Not Rated
Circuit Breaker Actuator
Push Button
Max. AIR Rating
2kA at 28V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7068
- Zoro #
- G002943432
- UPC #
- 632085070687
- Country of Origin
- China
Dimensions
- Depth
- 0.24 in
- Height
- 1.41 in
Details
- Item
- Circuit Breaker
- Series
- ATO/ATC
- Amps
- 30 A
- AC Voltage Rating
- Not Rated
- Circuit Breaker Actuator
- Push Button
- Max. AIR Rating
- 2kA at 28V DC
- Trip Type
- Thermal
- DC Voltage Rating
- 32V DC
Description

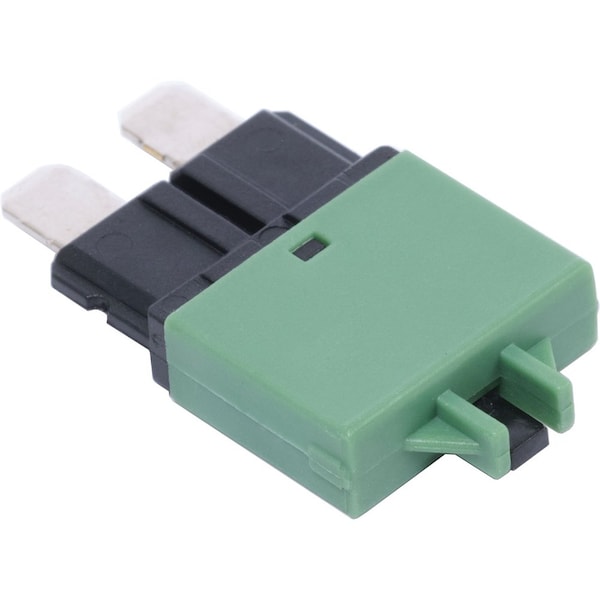

7068 ATO/ATC-Style Low Profile Circuit Breaker - 2-Pack - 30 Amp
Use a manually resettable circuit breaker instead of an ATO or ATC fuse.
Features:
- Drop in replacement for ATO and ATC blade style fuses
- Manual push button reset complies with ABYC circuit protection requirements
- Compatible with Water-Resistant ST-Blade Fuse Block with cover secured
- Compatible with all other ST-Blade Fuse blocks without cover
- Amperage: 30 Amp
- Color: Green
- Maximum Voltage: 28V DC
- Circuit Breaker Type: Thermal Trip, Manual Reset
- Interrupt Capacity: 2000A @ 28V DC
- Minimum Operating Temperature: -30° C
- Maximum Operating Temperature: 77° C
