Shop BLUE SEA SYSTEMS

Circuit Breaker, 187 Series, 40A, Not Rated, 5kA at 14V DC

  • Mfr # 7138

  • Zoro # G803532972

product price:  $94.25
/ea

Key Features

Series
187
Amps
40 A
AC Voltage Rating
Not Rated
Circuit Breaker Actuator
Lever
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
7138
Zoro #
G803532972
UPC #
632085171384
Country of Origin
Mexico

Dimensions

Width
2.323 in
Depth
1.797 in
Height
3.439 in

Details

Item
Circuit Breaker
Series
187
Amps
40 A
AC Voltage Rating
Not Rated
Circuit Breaker Actuator
Lever
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
5kA at 14V DC
Trip Type
Thermal
Terminal Connection
Screw
DC Voltage Rating
48V DC

Description

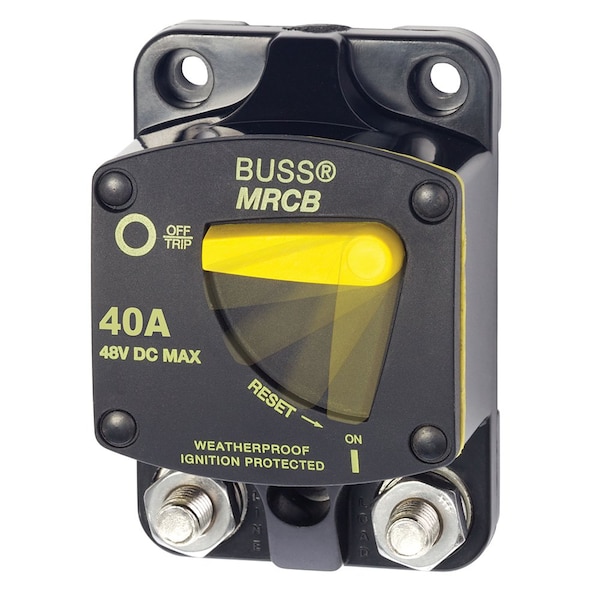

187 - Series Thermal Circuit Breakers - Surface Mount
40 Amp Circuit Breaker
PN: 7138
Features:
  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - safe for installation aboard gasoline powered boats

Specifications Circuit Breaker Class:Type III - Switchable / Manual Reset - Trip FreeType:Thermally Responsive Bi-Metal BladeCase Material:Thermoset PolyesterVoltage Rating:48 Volts DC MaximumInterrupt Rating:5,000 Amperes @12 Volts DC 3,000 Amperes @24 Volts DC 1,500 Amperes @42 Volts DCOperating Temperature Range:-25C° to +82C°

Restrictions

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
