Circuit Breaker, A Series, 32A, 2 Pole, 120/240V AC, 5kA at 32V DC
Mfr # 7575
Zoro # G302943330
product price: $54.75
/eaKey Features
Series
A
Amps
32A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Raised Rocker
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
7575
Zoro #
G302943330
UPC #
632085075750
Country of Origin
Mexico
Dimensions
Width
1-1/2 in
Depth
2.40 in
Height
2.31 in
Details
Item
Circuit Breaker
Series
A
Amps
32A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Raised Rocker
Max. AIR Rating
5kA at 32V DC
Trip Type
Hydraulic Magnetic
Terminal Connection
Screw
DC Voltage Rating
32V DC
Description

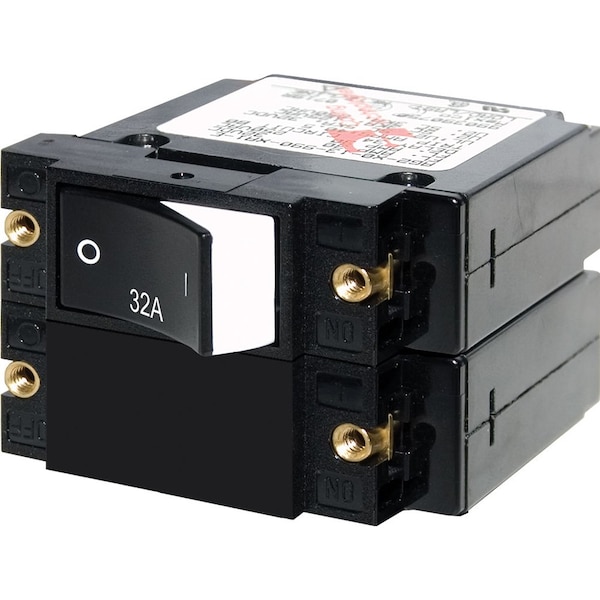

A-Series Raised Rocker Circuit Breaker - Double Pole - 32A
Features:
Specifications:
Features:
- Color actuator indicates "OFF" position
- "Trip Free" design cannot be held "ON" during fault current condition
- International ON/OFF symbols support vertical or horizontal mounting
Specifications:
- Amperage: 32A AC / 32A DC
- Actuator Style: Raised Rocker
- Poles: 2
- Maximum Voltage: 120V AC / 240V AC / 32V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.38lb (0.17 kg)
