Circuit Breaker, A Series, 8A, 1 Pole, 240V AC, 7.5kA at 65V DC
Mfr # 7347
Zoro # G402942783
product price:Â
$
26.45
/ea
Key Features
Series
A
Amps
8 A
Number of Poles
1
AC Voltage Rating
240V AC
Circuit Breaker Actuator
Toggle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7347
- Zoro #
- G402942783
- UPC #
- 632085073473
- Country of Origin
- Mexico
- Item
- Circuit Breaker
- Series
- A
- Amps
- 8 A
- Number of Poles
- 1
- AC Voltage Rating
- 240V AC
- Circuit Breaker Actuator
- Toggle
- Max. AIR Rating
- 7.5kA at 65V DC
- Trip Type
- Hydraulic Magnetic
- Terminal Connection
- Screw
- DC Voltage Rating
- 65V DC
Description

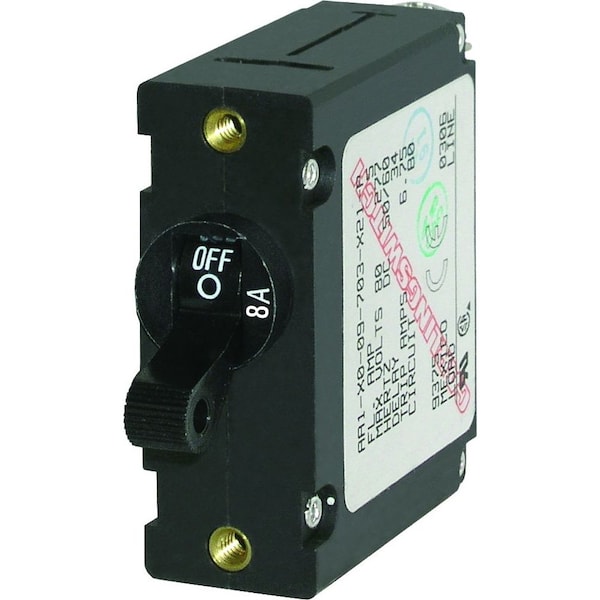

AC / DC Single Pole Magnetic World Circuit Breaker
The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.
PN: 7347
Color: Black
Amperage: 8 Amp
Delay: Standard
Features:
Specifications Circuit Breaker TypeMagnetic Hydraulic - Trip FreeMaximum Voltage277 Volts AC / 65 Volts DCRated Switch Cycles10,000@rated amperage and voltage
The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.
PN: 7347
Color: Black
Amperage: 8 Amp
Delay: Standard
Features:
- The industry standard circuit breaker for Blue Sea Systems electrical panels
- Combines switching and circuit protection into a single device
- Single pole Quick Trip models are designed specifically for electronics protection
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications Circuit Breaker TypeMagnetic Hydraulic - Trip FreeMaximum Voltage277 Volts AC / 65 Volts DCRated Switch Cycles10,000@rated amperage and voltage
